Rough-terrain forklifts & telehandlers
RT Diesel Rough-Terrain Forklift, 5 to 10 t
Diesel / LPGSale and rental
- Capacity
- 5 - 10 t
- Specifications by model
- 10 models

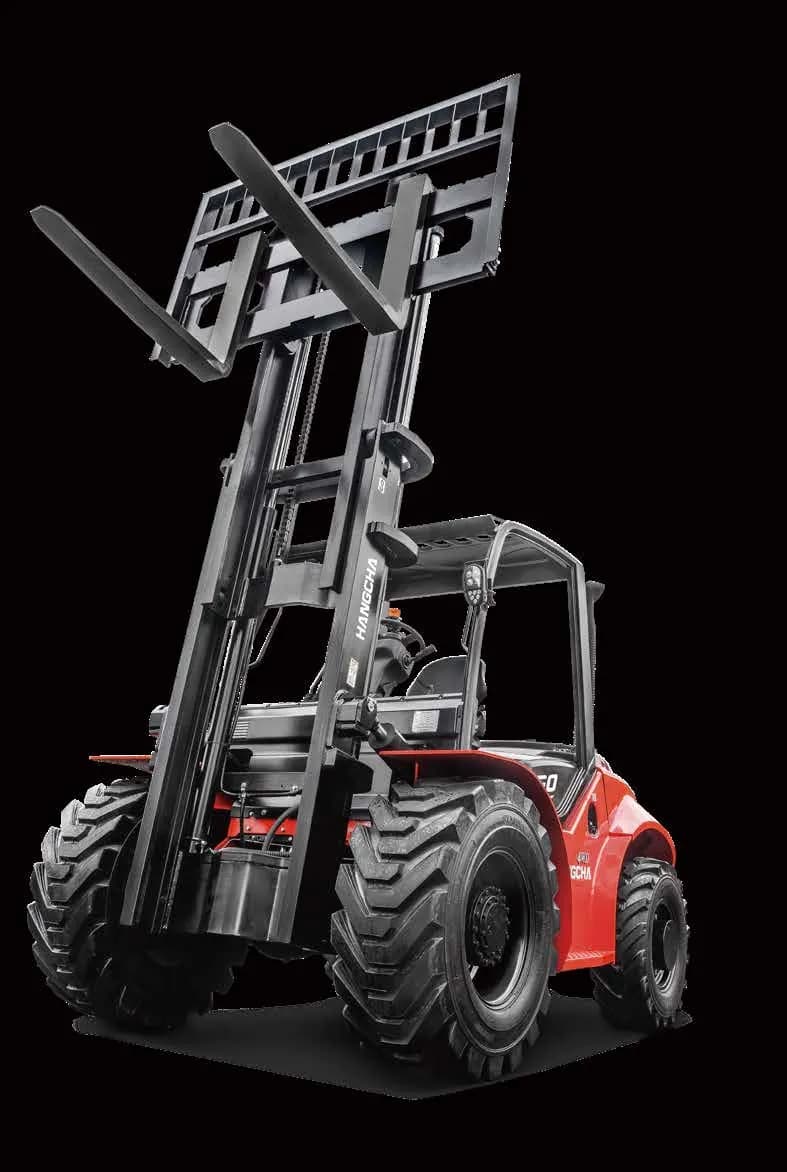

The RT series is a range of 2WD/4WD internal-combustion rough-terrain forklifts rated from 5,000 to 10,000 kg, available in 10 models powered by Deutz or Cummins diesel engines. Designed for the uneven ground of stone markets, timber yards and construction sites, as well as wet and slippery roads, it combines a multi-gear transmission, an oscillating steer axle and 370 mm of ground clearance. Available for sale and rental.
- 5,000 to 10,000 kg across 10 models, developed on the Hangcha XF platform.
- Multi-gear 4-wheel drive with one-key switching between 4WD and 2WD.
- Oscillating steer axle and 370 mm ground clearance to clear obstacles.
- Deutz or Cummins diesel engines meeting Stage V emissions standards.
Distributed brand : Hangcha
The needs assessment is free and without obligation.
Download the spec sheet (PDF)Specifications by model
| Model | CPCD50-XW70C-RT4 | CPCD50-XW95C-RT4 | CPCD50-XW70E-RT2 | CPCD50-XW95E-RT2 | CPCD70-XH16C-RT4 | CPCD70-XH16E-RT2 | CPCD100-XH16C-RT4 | CPCD70-XW70C-RT4 | CPCD70-XW70E-RT2 | CPCD100-XW70C-RT4 |
|---|---|---|---|---|---|---|---|---|---|---|
| Distinguishing mark | ||||||||||
| 1.1 Manufacturer | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. |
| 1.2 Manufacturer's type designation | CPCD50-XW70C-RT4 | CPCD50-XW95C-RT4 | CPCD50-XW70E-RT2 | CPCD50-XW95E-RT2 | CPCD70-XH16C-RT4 | CPCD70-XH16E-RT2 | CPCD100-XH16C-RT4 | CPCD70-XW70C-RT4 | CPCD70-XW70E-RT2 | CPCD100-XW70C-RT4 |
| 1.3 Drive: electric (battery or mains), diesel, petrol, fuel gas | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ |
| 1.4 Operator type: hand, pedestrian, standing, seated, order-picker | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ |
| 1.5 Rated capacity/rated load(Q (kg)) | 5000 kg | 5000 kg | 5000 kg | 5000 kg | 7000 kg | 7000 kg | 10000 kg | 7000 kg | 7000 kg | 10000 kg |
| 1.6 Load centre distance(c (mm)) | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| 1.8 Load distance, centre of drive axle to fork(x (mm)) | 735 mm | 735 mm | 735 mm | 735 mm | 740 mm | 740 mm | 932 mm | 740 mm | 740 mm | 932 mm |
| 1.9 Wheelbase(y (mm)) | 2150 mm | 2150 mm | 2150 mm | 2150 mm | 2500 mm | 2500 mm | 2800 mm | 2500 mm | 2500 mm | 2800 mm |
| Weight | ||||||||||
| 2.1 Service Weight(kg) | 9050 kg | 9050 kg | 9050 kg | 9050 kg | 10400 kg | 10400 kg | 15500 kg | 10400 kg | 10400 kg | 15500 kg |
| 2.2 Axle loading, laden front/rear(kg) | 12300/1750 kg | 12300/1750 kg | 12300/1750 kg | 12300/1750 kg | 15140/2260 kg | 15140/2260 kg | 22520/2980 kg | 15140/2260 kg | 15140/2260 kg | 22520/2980 kg |
| 2.3 Axle loading, unladen front/rear(kg) | 4280/4770 kg | 4280/4770 kg | 4280/4770 kg | 4280/4770 kg | 4310/6090 kg | 4310/6090 kg | 6920/8580 kg | 4310/6090 kg | 4310/6090 kg | 6920/8580 kg |
| Tyres, chassis | ||||||||||
| 3.1 Tyres: solid rubber, superelastic, pneumatic, polyurethane | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ | ‑ |
| 3.2 Tyre size, front | 445/65-22.5-18PR | 445/65-22.5-18PR | 445/65-22.5-18PR | 445/65-22.5-18PR | 445/65-22.5-24PR | 445/65-22.5-24PR | 17.5-25-36PR | 445/65-22.5-24PR | 445/65-22.5-24PR | 17.5-25-36PR |
| 3.3 Tyre size, rear | 12.5/80-18-12PR | 12.5/80-18-12PR | 12.5/80-18-12PR | 12.5/80-18-12PR | 12.5/80-18-16PR | 12.5/80-18-16PR | 385/55-24.5-18PR | 12.5/80-18-16PR | 12.5/80-18-16PR | 385/55-24.5-18PR |
| 3.5 Wheels, number front / rear (x = driven wheels) | 2×/2× | 2×/2× | 2×/2 | 2×/2 | 2×/2× | 2×/2 | 2×/2× | 2×/2× | 2×/2 | 2×/2× |
| 3.6 Tread, front(b10 (mm)) | 1660 mm | 1660 mm | 1660 mm | 1660 mm | 1700 mm | 1700 mm | 2095 mm | 1700 mm | 1700 mm | 2095 mm |
| 3.7 Tread, rear(b11 (mm)) | 1760 mm | 1760 mm | 1760 mm | 1760 mm | 1760 mm | 1760 mm | 1900 mm | 1760 mm | 1760 mm | 1900 mm |
| Dimensions | ||||||||||
| 4.1 Tilt of mast/fork carriage forward/backward(α/β(°)) | 15/15 ° | 15/15 ° | 15/15 ° | 15/15 ° | 15/15 ° | 15/15 ° | 15/15 ° | 15/15 ° | 15/15 ° | 15/15 ° |
| 4.2 Height, mast lowered(h1 (mm)) | 2685 mm | 2685 mm | 2685 mm | 2685 mm | 2935 mm | 2935 mm | 3290 mm | 2935 mm | 2935 mm | 3290 mm |
| 4.3 Free lift(h2 (mm)) | 170 mm | 170 mm | 170 mm | 170 mm | 175 mm | 175 mm | 200 mm | 175 mm | 175 mm | 200 mm |
| 4.4 Lift(h3 (mm)) | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm |
| 4.5 Height, mast extended(h4 (mm)) | 4534 mm | 4534 mm | 4534 mm | 4534 mm | 4534 mm | 4534 mm | 4735 mm | 4534 mm | 4534 mm | 4735 mm |
| 4.7 Height of overhead guard(h6 (mm)) | 2575 mm | 2575 mm | 2575 mm | 2575 mm | 2575 mm | 2575 mm | 2575 mm | 2575 mm | 2575 mm | 2575 mm |
| 4.19 Overall length(l1 (mm)) | 4865 mm | 4865 mm | 4865 mm | 4865 mm | 5360 mm | 5360 mm | 6242 mm | 5360 mm | 5360 mm | 6242 mm |
| 4.20 Length to face of forks(l2 (mm)) | 3665 mm | 3665 mm | 3665 mm | 3665 mm | 4140 mm | 4140 mm | 4722 mm | 4140 mm | 4140 mm | 4722 mm |
| 4.21 Overall width(b1 (mm)) | 2105 mm | 2105 mm | 2105 mm | 2105 mm | 2145 mm | 2145 mm | 2550* mm | 2145 mm | 2145 mm | 2550* mm |
| 4.22 Fork dimensions ISO 2331(s/e/l (mm)) | 60×150×1200 mm | 60×150×1200 mm | 60×150×1200 mm | 60×150×1200 mm | 65×150×1220 mm | 65×150×1220 mm | 80×160×1520 mm | 65×150×1220 mm | 65×150×1220 mm | 80×160×1520 mm |
| 4.23 Fork carriage DIN 15 173 --- ISO 2328, class/type A,B | IVB | IVB | IVB | IVB | IVB | IVB | B | IVB | IVB | B |
| 4.24 Fork-carriage width(b3 (mm)) | 1950 mm | 1950 mm | 1950 mm | 1950 mm | 1950 mm | 1950 mm | 2150 mm | 1950 mm | 1950 mm | 2150 mm |
| 4.25 Distance between fork-arms(b5 (mm)) | 300-1950 mm | 300-1950 mm | 300-1950 mm | 300-1950 mm | 300-1950 mm | 300-1950 mm | 440-2150 mm | 300-1950 mm | 300-1950 mm | 440-2150 mm |
| 4.31 Ground clearance, laden, below mast(m1 (mm)) | 385 mm | 385 mm | 385 mm | 385 mm | 385 mm | 385 mm | 390 mm | 385 mm | 385 mm | 390 mm |
| 4.32 Ground clearance, centre of wheelbase(m2 (mm)) | 370 mm | 370 mm | 370 mm | 370 mm | 387 mm | 387 mm | 424 mm | 387 mm | 387 mm | 424 mm |
| 4.34 Aisle width(Ast (mm)) | 6285 mm | 6285 mm | 5685 mm | 5685 mm | 7450 mm | 6120 mm | 8392 mm | 7450 mm | 6120 mm | 8392 mm |
| 4.35 Turning radius(Wa (mm)) | 4150 mm | 4150 mm | 3550 mm | 3550 mm | 5290 mm | 3960 mm | 5740 mm | 5290 mm | 3960 mm | 5740 mm |
| Performance Data | ||||||||||
| 5.1 Travel speed, laden/unladen(km/h) | 25/25 km/h | 25/25 km/h | 25/25 km/h | 25/25 km/h | 25/25 km/h | 25/25 km/h | 24/24 km/h | 25/25 km/h | 25/25 km/h | 24/24 km/h |
| 5.2 Lift speed, laden(m/s) | 0.45/0.52 m/s | 0.45/0.52 m/s | 0.45/0.52 m/s | 0.45/0.52 m/s | 0.41/43 m/s | 0.41/43 m/s | 0.41/0.43 m/s | 0.41/43 m/s | 0.41/43 m/s | 0.31/0.33 m/s |
| 5.3 Lowering speed, laden(m/s) | 0.5/0.43 m/s | 0.5/0.43 m/s | 0.5/0.43 m/s | 0.5/0.43 m/s | 0.46/0.39 m/s | 0.46/0.39 m/s | 0.46/0.39 m/s | 0.46/0.39 m/s | 0.46/0.39 m/s | 0.46/0.39 m/s |
| 5.5 Drawbar pull, laden(N) | 95000 N | 86000 N | 82000 N | 78000 N | 96000/- N | 88000/- N | 97000/- N | 87000/- N | 80000/- N | 88000/- N |
| 5.7 Gradeability, laden(%) | 55 % | 45 % | 42 % | 41 % | 68/- % | 60/- % | 41/- % | 59/- % | 52/- % | 36/- % |
| 5.10 Service brake | Wet brake | Wet brake | Wet brake | Wet brake | Wet brake | Wet brake | Wet brake | Wet brake | Wet brake | Wet brake |
| Parking brake | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
| Combustion engine | ||||||||||
| 7.1 Engine manufacturer/type | QSF3.8t3TC115 | DEUTZ TCD 3.6 L4 | QSF3.8t3TC115 | DEUTZ TCD 3.6 L4 | CUMMINS F 3.8 | CUMMINS F 3.8 | CUMMINS F 3.8 | CUMMINS QSF3.8t3TC115 | CUMMINS QSF3.8t3TC115 | CUMMINS QSF3.8t3TC115 |
| Emission STD | EURO IIIA/GB3 | EU stageV/ EPA Tier 4F | EURO IIIA/GB3 | EU stageV/ EPA Tier 4F | EU stageV/EPA Tier 4F | EU stageV/EPA Tier 4F | EU stageV/EPA Tier 4F | EURO IIIA/GB3 | EURO IIIA/GB3 | EURO IIIA/GB3 |
| 7.2 Engine power according to DIN ISO 1585(kW/r/min) | 86/2200 kW/r/min | 55.4/2300 kW/r/min | 86/2200 kW/r/min | 55.4/2300 kW/r/min | 90/2200 kW/r/min | 90/2200 kW/r/min | 90/2200 kW/r/min | 86/2200 kW/r/min | 86/2200 kW/r/min | 86/2200 kW/r/min |
| 7.3 Max. torque(N·m/r/min) | 470/1100-1700 N·m/r/min | 405/1300 N·m/r/min | 470/1100-1700 N·m/r/min | 405/1300 N·m/r/min | 500/1500 N·m/r/min | 500/1500 N·m/r/min | 500/1500 N·m/r/min | 470/1100-1700 N·m/r/min | 470/1100-1700 N·m/r/min | 470/1100-1700 N·m/r/min |
| 7.4 Number of cylinders/displacement((-)/(cm³)) | 4/3759 (-)/(cm³) | 4/3620 (-)/(cm³) | 4/3759 (-)/(cm³) | 4/3620 (-)/(cm³) | 4/3759 (-)/(cm³) | 4/3759 (-)/(cm³) | 4/3759 (-)/(cm³) | 4/3759 (-)/(cm³) | 4/3759 (-)/(cm³) | 4/3759 (-)/(cm³) |
| 7.10 Battery voltage/nominal capacity(V/Ah) | 2-12/90 V/Ah | 2-12/90 V/Ah | 2-12/90 V/Ah | 2-12/90 V/Ah | 2-12/90 V/Ah | 2-12/90 V/Ah | 2-12/90 V/Ah | 2-12/90 V/Ah | 2-12/90 V/Ah | 2-12/90 V/Ah |
| Additional data | ||||||||||
| 10.3 Hydraulic Tank - capacity (drain & refill)(liter) | 115 liter | 115 liter | 115 liter | 115 liter | 115 liter | 115 liter | 160 liter | 115 liter | 115 liter | 160 liter |
| 10.4 Fuel tank capacity(liter) | 120 liter | 120 liter | 120 liter | 120 liter | 120 liter | 120 liter | 150 liter | 120 liter | 120 liter | 150 liter |
Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.
Highlights
- 2WD/4WD rough terrain forklift with capacities of 5,000 to 10,000 kg, developed on the basis of the Hangcha XF series.
- Powerful / Efficient / Reliable; meets all Stage V emissions standards (Stage V applied for European Union, also including Israel and Turkey).
- Engine choices: Deutz (TCD 3.6 L4, technical route TCI+CR+EGR+DOC+DPF) and Cummins (F3.8, technical route TCI+CR+DOC+DPF+SCR).
- Interactive LCD instrument with four interactive buttons and CAN bus communication; protocol compatible with CANopen and SAE J1939 standards.

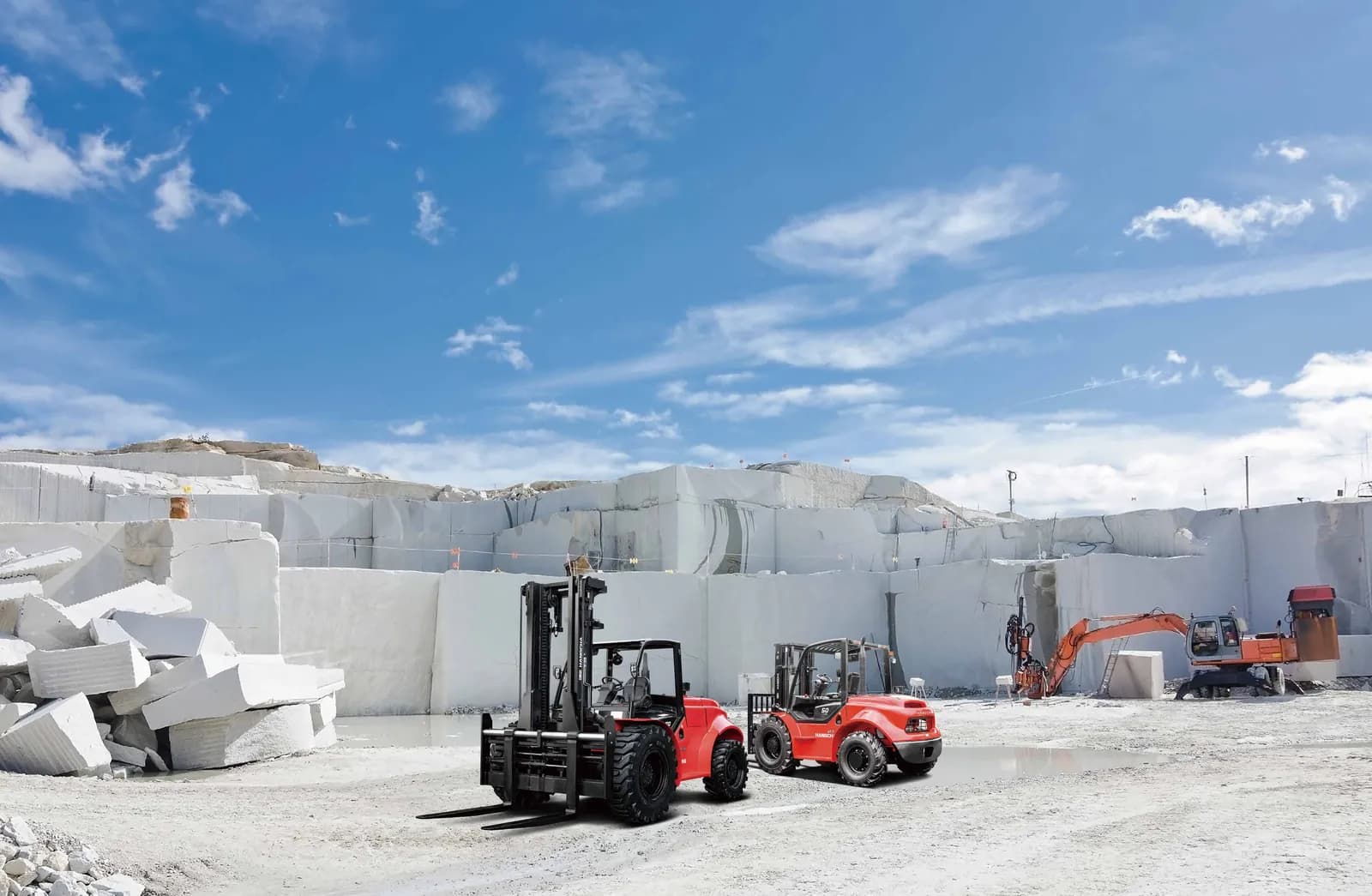

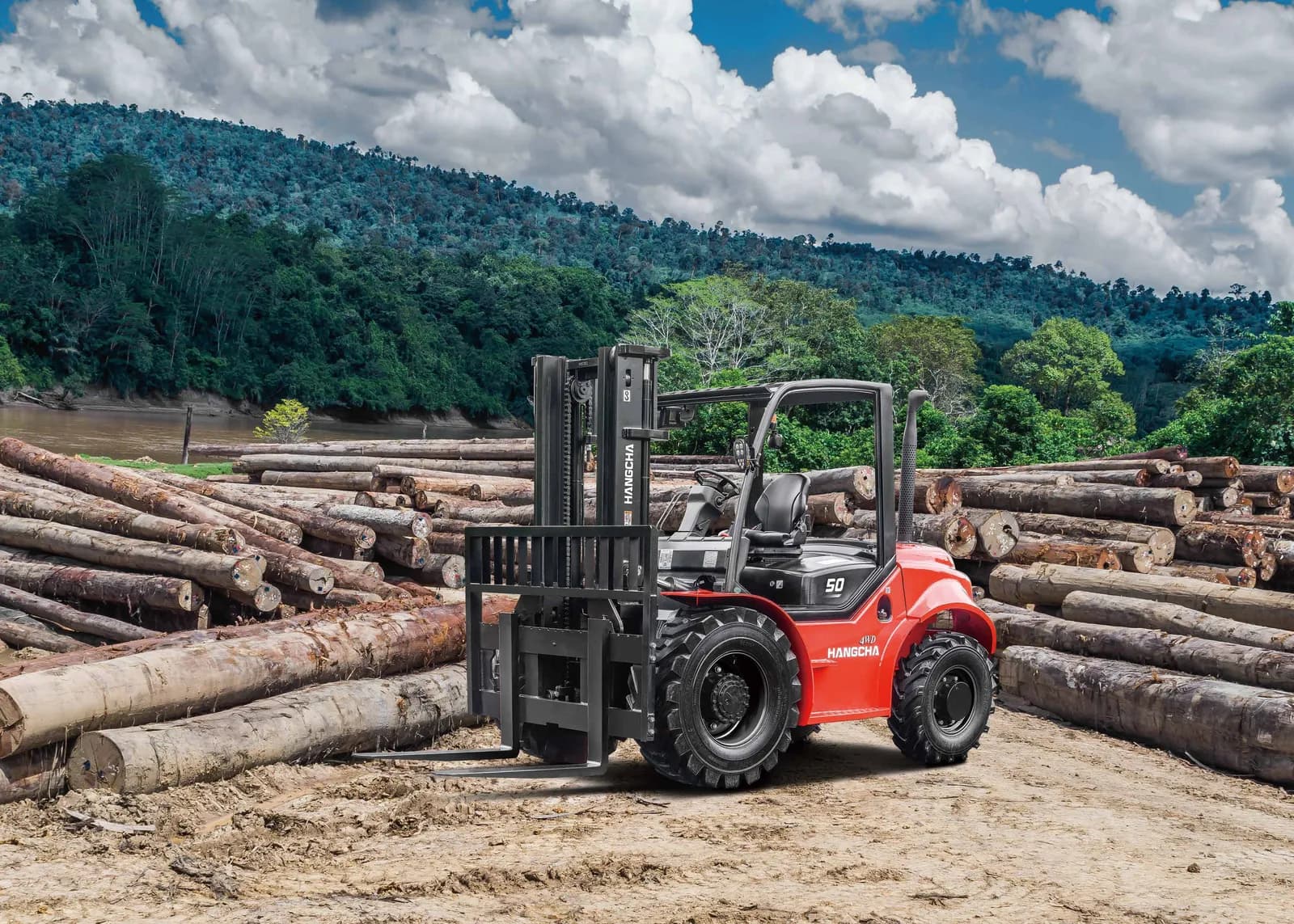

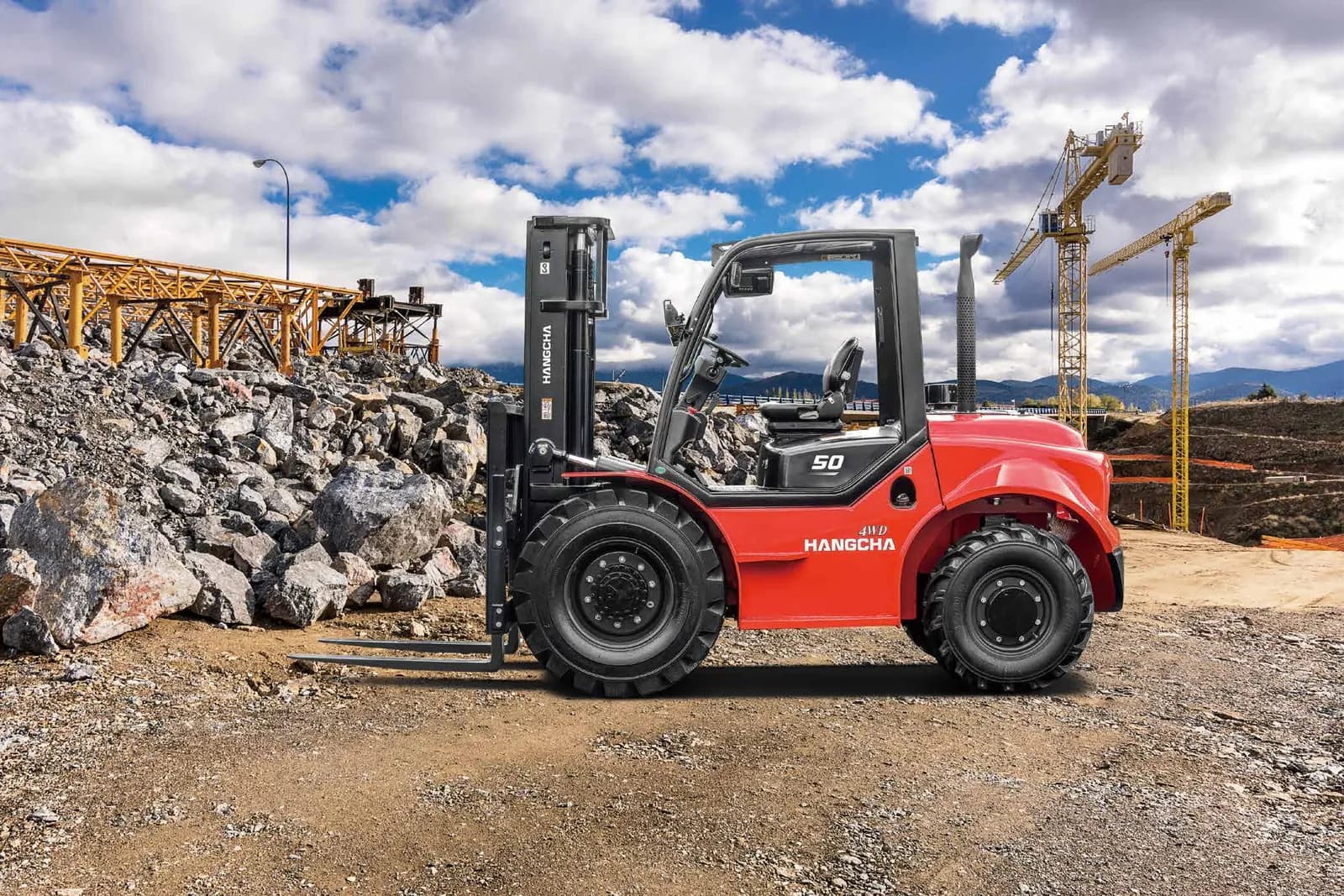

- Adapts to rugged roads in stone markets, timber markets and construction sites, as well as wet and slippery roads in rain and snow.
- 4 drive wheel multi-gears transmission: hydraulic transmission box with electro-hydraulic commutation and electronically controlled decoupling (one-key switching between 4WD and 2WD) for higher running speed and greater climbing ability.
- 5t transmission gears: 3 forward / 1 reverse; 7t and 10t: 3 forward / 3 reverse.
- Mast tilt angle 15° forward / 15° back, suited to loading, unloading and transportation of goods in off-road conditions.
- Oscillating steer axle allows either wheel to step over obstacles keeping the truck and load level.
- Ground clearance of 370 mm with a low center of gravity from distributed weight for maneuverability and excellent stability.
- Safety: independent steering and brake oil circuits; brake valve plus accumulator; returned-oil filtration device as standard; optional OPS function.
- Comfort: suspension with integrated overhead guard, full-floating transmission, engine shock absorber and suspension seat; extra foot space, non-slip step, new steering wheel, new brake system and easy-to-operate levers; large roof screen for excellent all-round visibility.
- Reliability: reinforced chassis (CAE simulation), dual air filters and two-stage air filter as standard, turbo engine, higher-specification fork mounting level IVB (5t/7t).
- Productivity: transmission gets maximum performance from the engine without high revolutions (fuel saving, lower noise, longer engine life); new Dynamic load sensing hydraulic steering system; new efficiency LED lighting system; wet brake for maximum service life; differential with manual differential lock for ultimate traction.
- Easy maintenance: two-piece floorboard easy to lift and remove for power train access; radiator cover turns by hand; easy-to-open hook for quick engine compartment access.
- HANGCHA trucks conform to the European Safety Requirements (CE); ISO9001:2015, ISO14001:2015, ISO45001:2018 certified.
Standard equipment
- Counterweight cover
- Full-suspension seat
- Dual air filters
- High-position exhaust
- Fuel tank cover (with lock)
- Fan protection device
- Rear working light
- Alarm light
- Emergency switch
- Right and left reflective mirrors
- PVC ceiling
- Wet brake
- Mud baffle provided with rigging hole
Options
- Front windshield and wipers
- Cab (warm air blower and fan are available for option)
- Engine cover with lock
- Engine cover with dual sound insulation cushion
- Engine cover with lock + dual sound insulation cushion
- 3rd/4th/5th valve
- Voice type reversing buzzer
- Blue light lamp
- Low-temperature cold start-up battery (-20℃)
- OPS system
- OPS system & Compatible with Sequential Seat Belt Interlock System
- Sealant-filled tubeless tire
- Cover: '2WD/4WD Rough Terrain Forklift with capacities of 5,000 to 10,000kg'. Factory site: 666 Xiangfu Road, Hangzhou, Zhejiang, China (311305). HANGCHA GROUP CO., LTD.
- 2025 VERSION 8 / COPYRIGHT 2025/12.
- HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colors, equipment, or specifications detailed in this brochure, or to discontinue individual models. The colors of trucks delivered may differ slightly from those in brochures.
- Note: Stage V applied for European Union also including Israel and Turkey.
- Deutz engine technical route: TCI+CR+EGR+DOC+DPF (used for Deutz engine). Cummins technical route: TCI+CR+DOC+DPF+SCR (used for Cummins engine).
- Main spec grid (page 6) footnote *: Truck can enter container by replacing small tyres (applies to 10t overall width 2550*).
- Lift speed printed as '0.41/43' for CPCD70-XH16C-RT4, CPCD70-XH16E-RT2 and CPCD70-XW70C-RT4 (transcribed verbatim; likely means 0.41/0.43).
- '/-' entries in drawbar pull and gradeability for 7t/10t models are printed verbatim (second value shown as '-').
- Mast option tables (page 5) are given for 5t, 7t and 10t classes (all pneumatic), with two mast types: 'Wide view mast' (M models) and 'Wide view full free triplex mast' (N models). Columns: Max. fork height (h3), Lowered (h1), Overall height Extended without/with backrest (h4), Free lift without/with backrest (h2), Front Overhang, Tilt range FWD/BWD, and residual Capacity at max height at 24in(600mm) load centre per ISO 22915-2 (counterbalanced) and ISO 22915-13 (rough-terrain) in lb(kg). Full values transcribed in details.md.
- Mast table note: ISO 22915-2 for industrial use; ISO 22915-13 for rough terrain use. With integral sideshifter minus 400kg, with sideshifter minus 500kg.
- Page 2 Stage V summary table lists 5 highlighted models: CPCD50-XW95E-RT2 (Deutz TCD 3.6 L4), CPCD50-XW95C-RT4 (Deutz TCD 3.6 L4), CPCD70-XH16C-RT4 (Cummins F3.8), CPCD70-XH16E-RT2 (Cummins F3.8), CPCD100-XH16C-RT4 (Cummins F3.8); all EU stageV/EPA Tier 4F, transmission 'China', wet brake.
- Full main-grid engine names printed as 'CUMMINS F 3.8' and 'CUMMINS QSF3.8t3TC115' with double spaces (transcribed as printed).
