Forklifts

XC Lithium Electric Forklift, 1.5 to 3.8 t

ElectricSale and rental

Capacity: 1.5 - 3.8 t
Specifications by model: 18 models

The XC series covers 4-wheel electric forklift trucks with lithium power, from 1.5 to 3.8 tonnes, across 18 models. Built for demanding indoor and outdoor handling, it combines a spacious operator platform, a LiFePO4 lithium battery co-developed with CATL and high-efficiency control electronics. Operation is quiet, emission-free and maintenance-free on the battery side, with opportunity charging. Available for sale and rental from HER.

Operating space more than 50% larger than a traditional electric truck
LiFePO4 lithium battery (HANGCHA and CATL), 6 years or 12,000 hours warranty
High-frequency MOSFET controller for smooth driving and lifting with regenerative braking
18 models from 1.5 to 3.8 t, for sale and rental

Distributed brand : Hangcha

The needs assessment is free and without obligation.

Specifications by model

Model	CPD20-XCY2-SIGW	CPD25-XCY2-SIGW	CPD30-XCY2-SIGW	CPD35-XCY2-SIGW	CPD38-XCY2-SIGW	CPD15-XCY2-SI	CPD18-XCY2-SI	CPD20-XCXY2-SI	CPD20-XCY2-SI	CPD20-XCY2H-SI	CPD25-XCY2-SI	CPD25-XCY2H-SI	CPD27-XCY2H-SI	CPD30-XCY2-SI	CPD30-XCY2H-SI	CPD35-XCY2-SI	CPD35-XCY2H-SI	CPD38-XCY2-SI
Distinguishing mark
Manufacturer's type designation	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Drive: electric (battery or mains), diesel, petrol, fuel gas	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Operator type: hand, pedestrian, standing, seated, order-picker	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Rated capacity/rated load(Q (kg))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Load centre distance(c (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Load distance, centre of drive axle to fork(x (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Wheelbase(y (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Weight
Service Weight(kg)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Axle loading, laden front/rear(kg)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Axle loading, unladen front/rear(kg)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Tyres, chassis
Tyres: solid rubber, superelastic, pneumatic, polyurethane	pneumatic	pneumatic	pneumatic	solid rubber	solid rubber	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Solid rubber	Solid rubber	Solid rubber
Tyre size, front	23×9-10-18PR	23×9-10-18PR	23×10-12-18PR	23×10-12	23×10-12	6.00-9-10PR	21×8-9-16PR	21×8-9-16PR	23×9-10-18PR	23×9-10-18PR	23×9-10-18PR	23×9-10-18PR	23×9-10-18PR	23×10-12-18PR	23×10-12-18PR	23×10-12	23×10-12	23×10-12
Tyre size, rear	18×7-8-14PR	18×7-8-14PR	18×7-8-16PR	200/50	200/50	16×6-8-16PR	16×6-8-16PR	16×6-8-16PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8-16PR	18×7-8-16PR	200/50	200/50	200/50
Wheels, number front / rear (x = driven wheels)	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2
Tread, front(b10 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Tread, rear(b11 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Dimensions
Tilt of mast/fork carriage forward/backward(alpha/beta(deg))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Height, mast lowered(h1 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Free lift(h2 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Lift(h3 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Height, mast extended(h4 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Height of overhead guard (Cabin)(h6 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Seat height/stand height(h7 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Coupling height(h10 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Overall length(l1 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Length to face of forks(l2 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Overall width(single/dual front tyres)(b1 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Fork dimensions(s/e/l(mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Fork carriage DIN 15 173 --- ISO 2328, class/type A,B	ISO2328 2A	ISO2328 2A	ISO2328 3A	ISO2328 3A	ISO2328 3A	ISO2328 2A	ISO2328 2A	ISO2328 2A	ISO2328 2A	ISO2328 2A	ISO2328 2A	ISO2328 2A	ISO2328 3A	ISO2328 3A	ISO2328 3A	ISO2328 3A	ISO2328 3A	ISO2328 3A
Fork-carriage width(b3 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Distance between fork-arms(b5 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Ground clearance, laden, below mast(m1 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Ground clearance, centre of wheelbase(m2 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Aisle width for pallets 1000 x 1200 crossways(Ast (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Aisle width for pallets 800 x 1200 lengthways(Ast (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Turning radius(Wa (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Performance data
Travel speed, laden/unladen(km/h)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Lift speed, laden/unladen(m/s)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Lowering speed, laden/unladen(m/s)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Max. Drawbar pull, laden/unladen(N)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Max. gradeability, laden/unladen(%)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Acceleration time, laden/unladen (0-10m)(s)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Service brake	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Parking brake	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical
Electric-engine
Drive motor rating S2 60 min(KW)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Lift motor rating at S3 15%(KW)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Battery acc. to DIN 43531/35/36 A,B,C, no	no	no	no	no	no	no	no	no	no	no	no	no	no	no	no	no	no	no
Battery voltage, nominal capacity K5(V / Ah)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Battery weight(kg)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Additional data
Manufacturer	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER	ENPOWER
Operating pressure for attachments(bar)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Oil volume for attachments(L / min)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Hydraulic Tank - capacity (drain & refill)(L)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Sound pressure level at the driver's seat(dB (A))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑

Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.

Highlights

TOTAL COMFORT: continuing the XC series specialized platform, operating space more than 50% larger than a traditional electric truck.
Wide-view mast with optimized design unlikely to obstruct the operator's line of sight; enlarged fork-carriage opening for a wider view.
Standard multi-way valve manipulator handle reduces manipulation force by 20%; standard lifting sensor and new load-sensing multi-way valve for comfortable operation and better inching performance.
Optional fingertip integrated operating system and Mini-lever operating system; combined armrest integrates emergency cut-off, horn and switches, CAN-bus electrically controlled, highly reliable.
Dashboard placed on the right side of the instrument rack; accessible and easy to operate.
Comfortable acceleration control and regenerative braking reduce driver fatigue.
Low centre of gravity and good stability; driver comfortable during turning.
Color-screen instruments with graphic interfaces; intuitive reading and friendly human-computer interface.
SOFT LANDING: intelligent sensing; when the fork is 100-60mm from the ground descending slows automatically to protect goods, pallet and ground.
Main electrical components (motor controller, contactor, power plug, emergency cut-off switch, dashboard, accelerator) are well-known foreign brands.
Emergency cut-off switch (standard) complies with European safety regulations; electronic and hydraulic overload protection devices; CE certified.
Silence, no pollution, energy saving; meets environmental protection requirements.
Ergonomically designed tilt-adjustable small-diameter steering wheel; seat adjustable back/forth by 210mm.
ADVANCEMENT: high-frequency MOSFET integrated controller for smooth accurate driving/lifting, regenerative braking, reverse braking, anti-sliding on ramps.
Rear axle with flexible suspension system (turning and deceleration functions standard) filters road clutter and improves comfort.
EPB (Electric Parking Brake) (optional) and steering-wheel adaptive steer control (optional).
High-power traveling motor: strong climbing ability, fast response, smooth start.
High-power oil pump motor with matching handle operation; high efficiency, built-in speed and temperature sensors.
Travel speed: New XC Series 16 (Basic) / 19 (High performance) km/h vs Old XC 14 / 18.
Energy consumption: New XC 8.6 vs Old XC 10.7; Battery life: New XC 10 vs Old XC 8 (under same working environment).
Noise can be as low as 70dBA.
EASY OPERATIONS AND REPAIR: fully sealed hood and side plates; drive motor high protection level dustproof/waterproof; truck water resistance IPX4.
Battery packs easily removed by manual or electric cart; hood with self-locking gas spring opens at a large angle for maintenance/replacement.
SAFE AND RELIABLE: standard fork descending buffering; optional electronic fork ascending buffering.
Handbrake optional alarm buzzer; optional electric handbrake with automatic parking and ramp holding function.
Optional descending lock disables the descending function when the driver leaves the seat.
Three horn buttons: driver's steering wheel, thumb-switch armrest (optional), reverse armrest (optional).
Hangcha FIMS (Fleet Intelligent Management System): real-time forklift and driver information; access control, GPS tracking, remote monitoring, maintenance reminder, vehicle management, vibration monitoring; optional pre-shift check, shift management, OpenAPI.

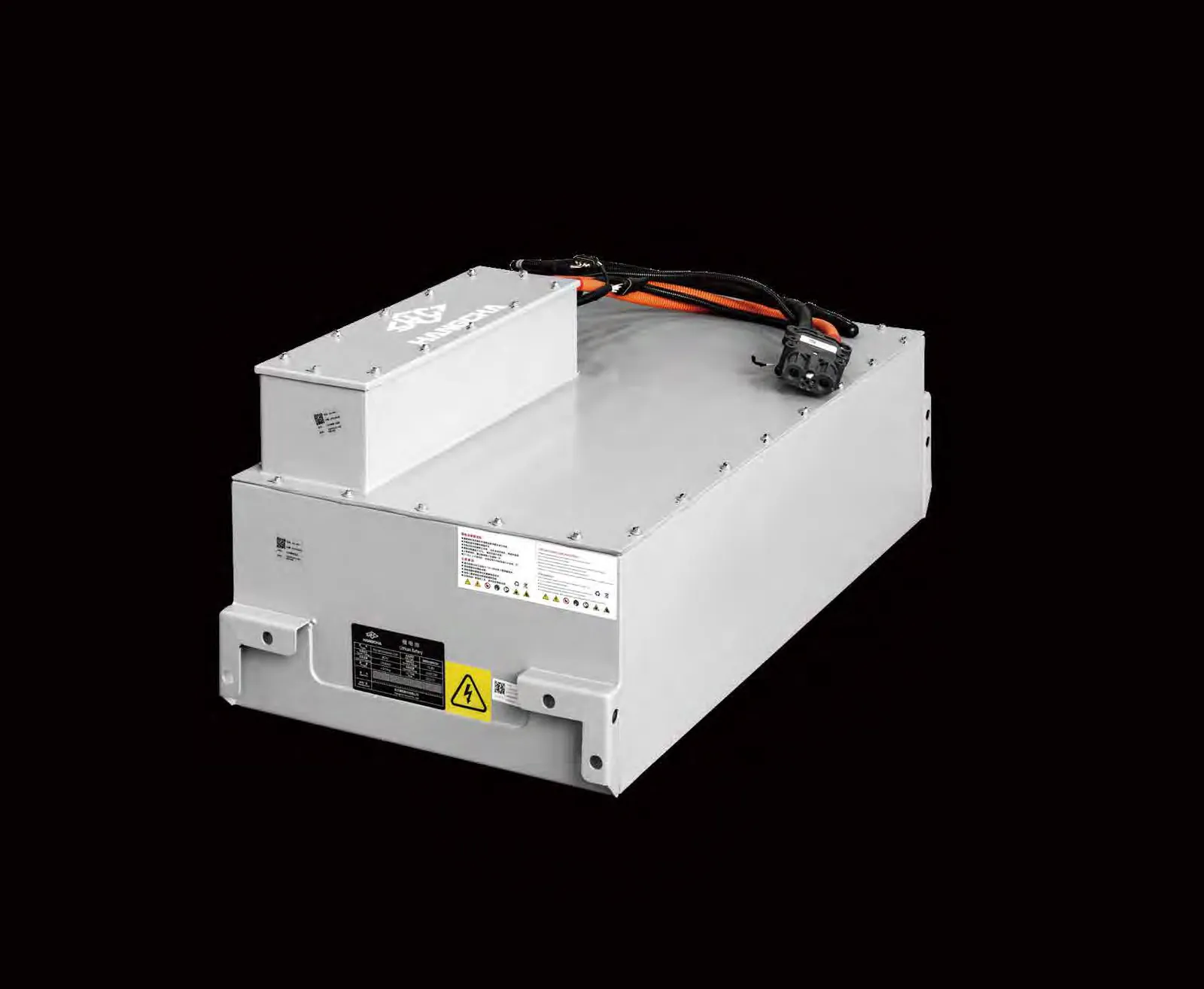

LITHIUM POWER (LiFePO4, developed jointly by HANGCHA and CATL): long service life (4000 full charging cycles with at least 75% residual capacity), cold-area application, high safety and reliability, maintenance free, opportunity charging, high energy density.
HANGCHA provides Li-Ion battery (LiFePO4) with 6 years or 12000 hours warranty; integrated BMS continually monitors energy management.

Standard equipment

Color: Dark green
Mast: Standard duplex mast
Fork and attachment: Standard fork; Fork arm carrier; Load backrest
Tires: Pneumatic tire (single)
Multiway valve: Double multi-way valve
Tiller: Lifting and tilting lever
Battery: Standard lithium battery
Light: LED head lamp; Turn signal lamp; LED rear combination lamp
Horn: Electric horn; Reverse buzzer
Safety configuration: Emergency power-off switch; Fuse box; Soft landing
Parking brake: Mechanical handbrake
Driving brake: Hydraulic assisted braking
Instrument rack space: Smart color-screen instrument (speed mode selection); Combination switch
Driving space: Standard overhead guard; Central rear view mirror; PVC ceiling
Seat: Standard seat
Other standard configuration: Oil pump reducer; Silent gear pump; DC-DC converter; Pedal pad; Traction pin; Integral stamped side panel and hood

Options

Color: Other customized color
Particular market: CE Standard
Cold storage environment: -30 degC
Mast: Configuration Table of the Mast (see mast specification tables, pages 6-7)
Fork and attachment: Non-standard series fork; Various attachments
Tires: Pneumatic tire (dual); Solid tire (single); Solid tire (dual)
Multiway valve: Triple valve; Quadruple valve; Quintuple valve
Tiller: Thumb switch handle; Rocker switch and armrest
Battery: Large-capacity lithium battery; Quick-change lithium battery
Light: Common alarm lamp; Acoustic and optical alarm lamp; LED rear lamp; Blue light; Straight projection lamp
Horn: Right rear armrest with horn button
Smart module: FIMS (Fleet intelligent management system)
Safety configuration: Reversing radar; OPS system; Fire extinguisher; Ascending buffering
Parking brake: EPB (Electric Parking Brake)
Instrument rack space: Cigarette lighter; USB port; Electronic code lock (start by swiping a card)
Driving space: Front windshield; Cab; Electric fan; Left and right rear view mirrors
Seat: Fully-suspended seat; Semi-suspended seat

Mast specification footnotes (pages 6-7): 1.5t/1.8t/2.0t/3.5-3.8t/2.0-2.5t mast tables - 'With sideshifter minus 150kg, with integrated sideshifter minus 100kg.'; 3.0t mast table - 'With sideshifter minus 200kg, with integrated sideshifter minus 100kg.'
Page 8 table titled 'Technical data (with high vision)'; page 9 table titled 'Technical data'. Page 9 overhead guard height (h6) shown with the cabin value in parentheses, e.g. 2100(2180).
Battery: HANGCHA Li-Ion (LiFePO4) 6 years or 12000 hours warranty; cells and modules from CATL; EVE battery capacity is standard, CATL battery capacity is optional.
Lithium battery: 4000 full charging cycles with at least 75% residual capacity. Charging/discharge/storage temperature -30C~65C.
AST (aisle width) = a + Wa + X + B, with a = 200 mm safety clearance.
HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colors, equipment, or specifications, or to discontinue individual models; delivered truck colors may differ slightly from brochure. HANGCHA trucks conform to European Safety Requirements. ISO9001:2015, ISO14001:2015, ISO45001:2018. CE certified.
Battery weight row (6.5) is printed as a minimum value (e.g. >=180 / >=220 / >=320 kg). Operating pressure for attachments (10.1) printed as <=160 bar.
