Forklifts

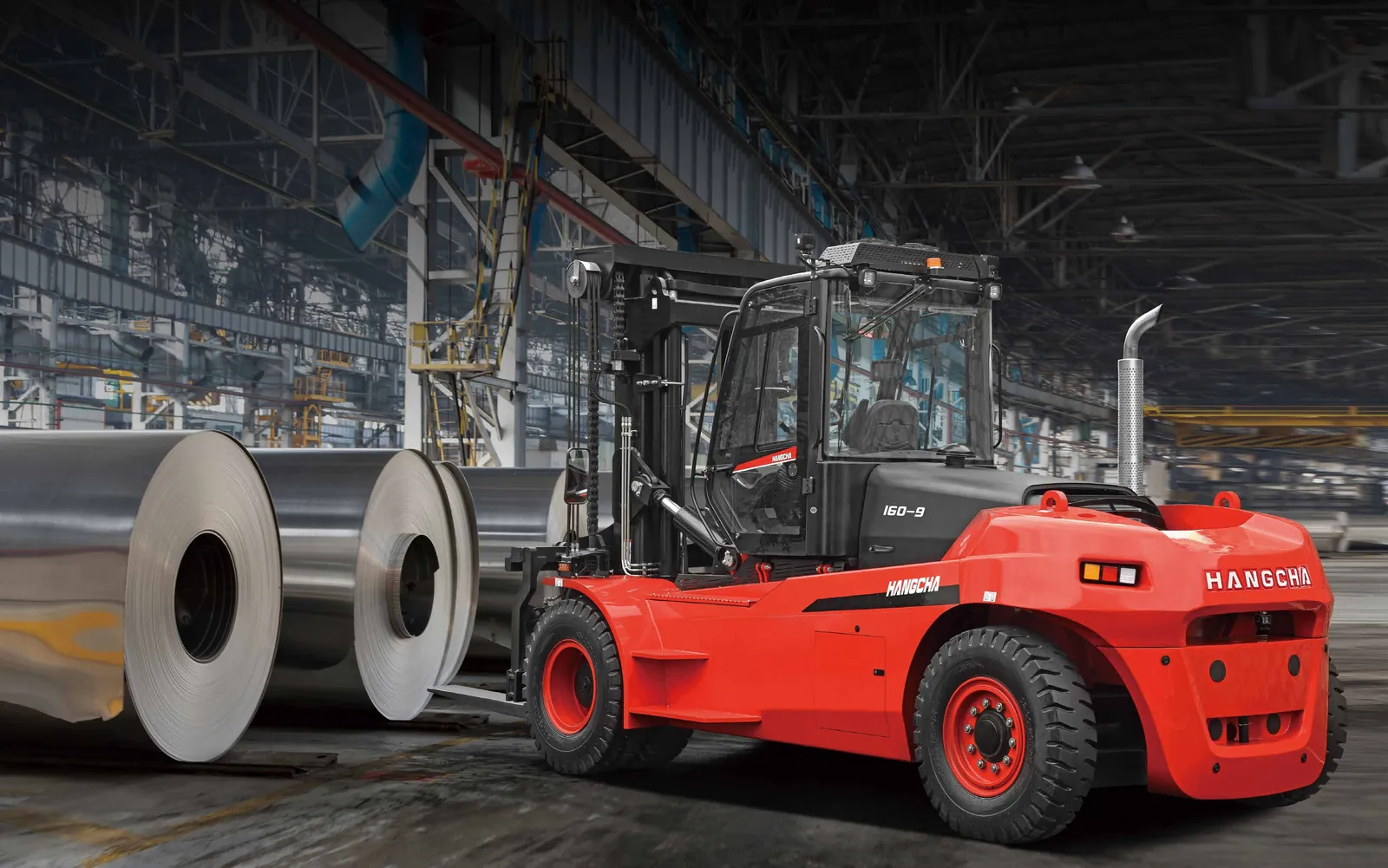

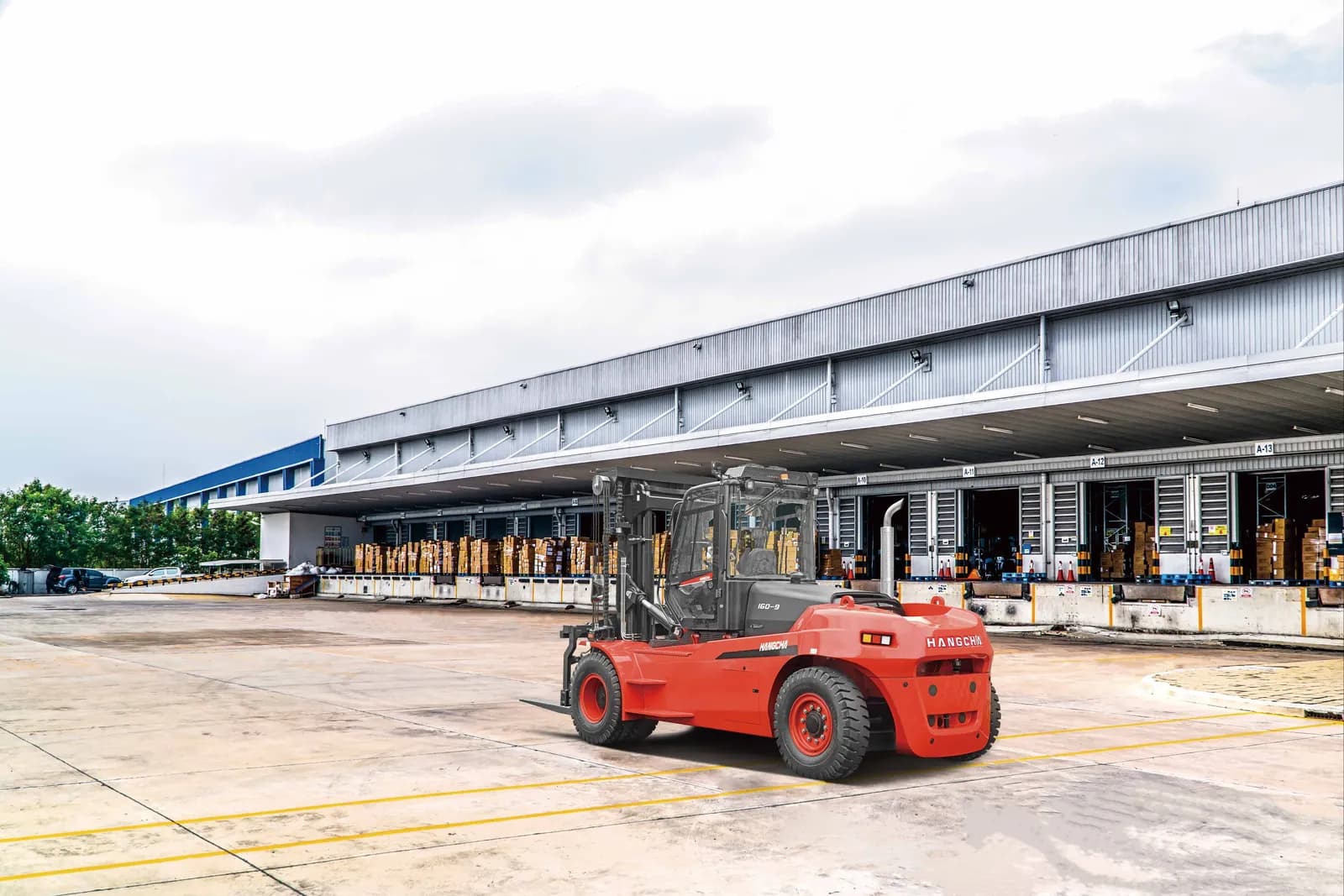

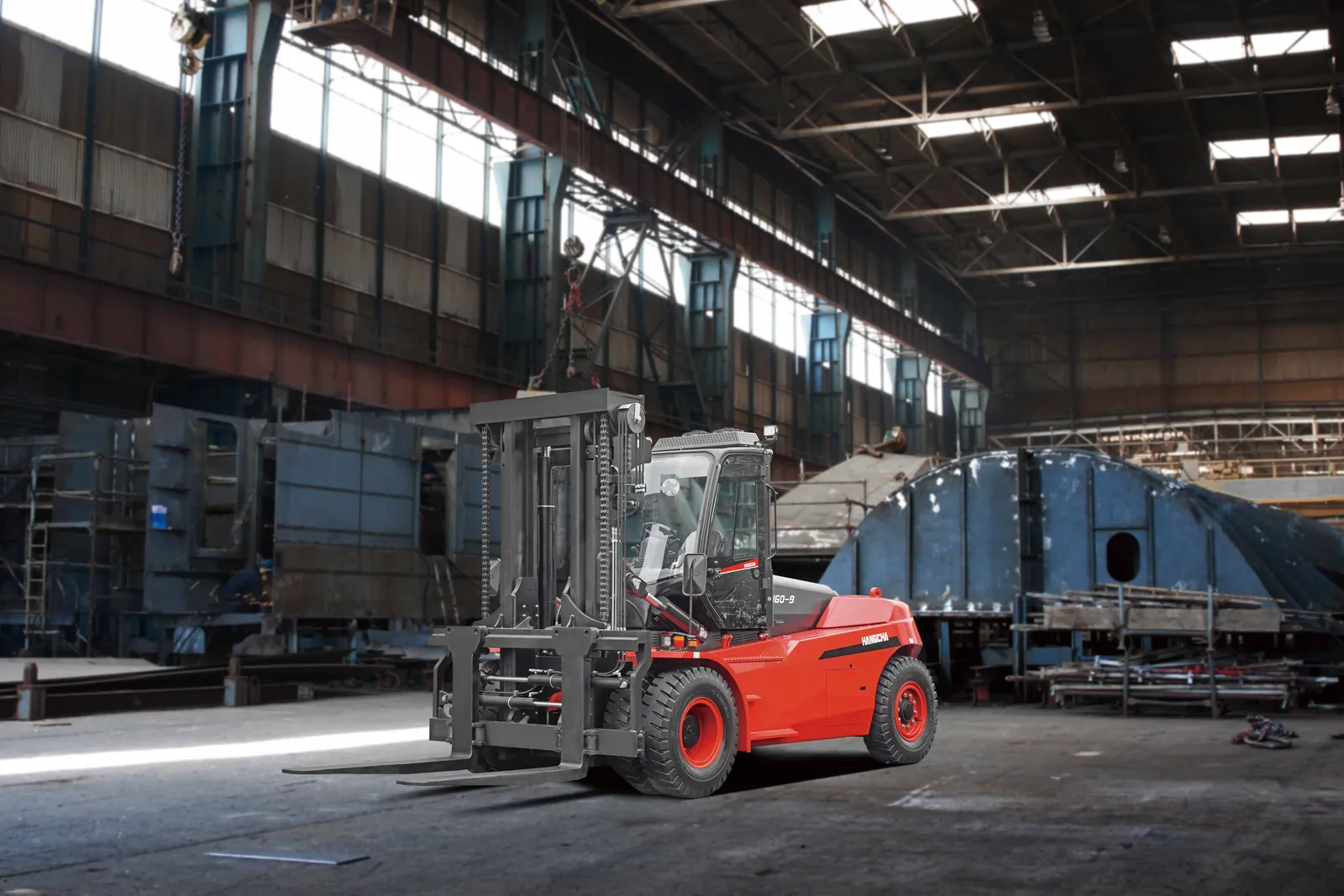

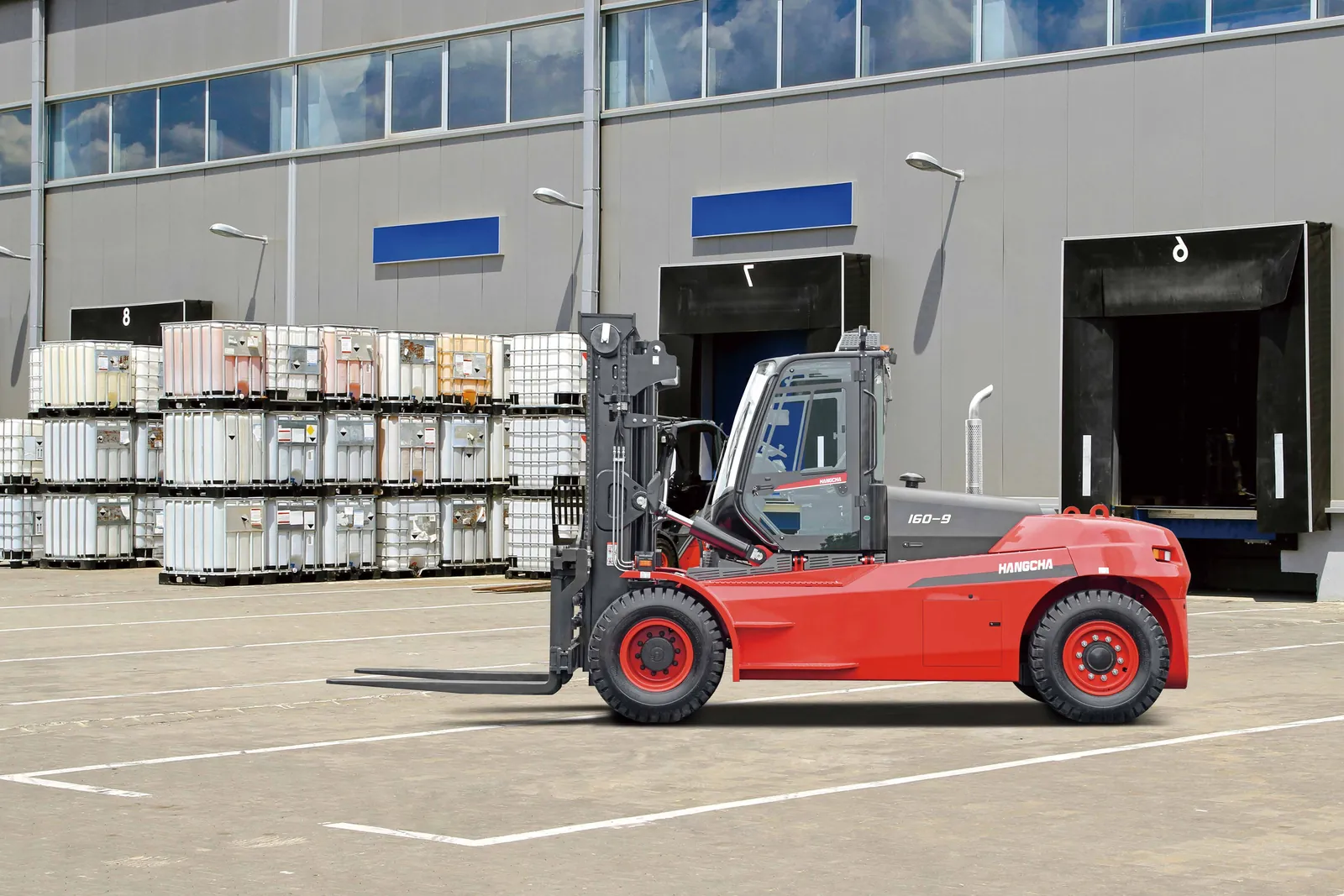

X Series Diesel Forklift, 14 to 18 t

Diesel / LPGSale and rental

Capacity: 14 - 18 t
Specifications by model: 14 models

The X Series brings together heavy-duty diesel forklift trucks rated from 14,000 to 18,000 kg. The range comprises 14 models powered by a CUMMINS B6.7 engine compliant with Stage V / Tier 4f emission standards and paired with a micro-electronically controlled ZF transmission. Suited to ports, industrial yards and heavy-load sites, it is available for both purchase and rental.

Capacities from 14 to 18 tonnes across 14 models
CUMMINS B6.7 engine, Stage V / Tier 4f compliant
ZF transmission with micro-electronic control and three-speed power shift
Fully suspended cab that tilts without tools for easy service access

Distributed brand : Hangcha

The needs assessment is free and without obligation.

Specifications by model

Model	CPCD140-XRW25G	CPCD140-XRH9G	CPCD140-XRAW25G	CPCD140-XRAH9G	CPCD160-XRW25G	CPCD160-XRH9G	CPCD180-XRXW25G	CPCD180-XRXH9G	CPCD160-XRAW25G	CPCD160-XRAH9G	CPCD180-XRW25G	CPCD180-XRH9G	CPCD180-XRAW25G	CPCD180-XRAH9G
Distinguishing mark
Manufacturer	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.
Manufacturer's type designation	CPCD140-XRW25G	CPCD140-XRH9G	CPCD140-XRAW25G	CPCD140-XRAH9G	CPCD160-XRW25G	CPCD160-XRH9G	CPCD180-XRXW25G	CPCD180-XRXH9G	CPCD160-XRAW25G	CPCD160-XRAH9G	CPCD180-XRW25G	CPCD180-XRH9G	CPCD180-XRAW25G	CPCD180-XRAH9G
Drive: electric (battery or mains), diesel, petrol, fuel gas	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Operator type: hand, pedestrian, standing, seated, order-picker	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Rated capacity/rated load(Q (kg))	14000 kg	14000 kg	14000 kg	14000 kg	16000 kg	16000 kg	18000 kg	18000 kg	16000 kg	16000 kg	18000 kg	18000 kg	18000 kg	18000 kg
Load centre distance(c (mm))	900 mm	900 mm	1200 mm	1200 mm	900 mm	900 mm	600 mm	600 mm	1200 mm	1200 mm	900 mm	900 mm	1200 mm	1200 mm
Load distance, centre of drive axle to fork(x (mm))	920 mm	920 mm	920 mm	920 mm	920 mm	920 mm	920 mm	920 mm	940 mm	940 mm	940 mm	940 mm	960 mm	960 mm
Wheelbase(y (mm))	3650 mm	3650 mm	3650 mm	3650 mm	3650 mm	3650 mm	3650 mm	3650 mm	3750 mm	3750 mm	3750 mm	3750 mm	4000 mm	4000 mm
Weight
Service Weight(kg)	20500 kg	20500 kg	22100 kg	22100 kg	21500 kg	21500 kg	20900 kg	20900 kg	24300 kg	24300 kg	24500 kg	24500 kg	25600 kg	25600 kg
Tyres, chassis
Tyres: solid rubber, superelastic, pneumatic, polyurethane	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Tyre size, front	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-24-20PR	12.00-24-20PR	12.00-24-20PR	12.00-24-20PR	12.00-24-20PR	12.00-24-20PR
Tyre size, rear	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-24-20PR	12.00-24-20PR	12.00-24-20PR	12.00-24-20PR	12.00-24-20PR	12.00-24-20PR
Wheels, number front / rear (x = driven wheels)	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2	4x/2
Tread, front(b10 (mm))	1894 mm	1894 mm	1894 mm	1894 mm	1894 mm	1894 mm	1894 mm	1894 mm	2013 mm	2013 mm	2013 mm	2013 mm	2013 mm	2013 mm
Tread, rear(b11 (mm))	2030 mm	2030 mm	2030 mm	2030 mm	2030 mm	2030 mm	2030 mm	2030 mm	2200 mm	2200 mm	2200 mm	2200 mm	2200 mm	2200 mm
Dimensions
Tilt of mast/fork carriage forward/backward(alpha/beta (deg))	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg	6/12 deg
Height, mast lowered(h1 (mm))	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3400 mm	3400 mm	3400 mm	3400 mm	3400 mm	3400 mm
Free lift(h2 (mm))	90 mm	90 mm	95 mm	95 mm	90 mm	90 mm	90 mm	90 mm	110 mm	110 mm	110 mm	110 mm	110 mm	110 mm
Lift(h3 (mm))	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm	3000 mm
Height, mast extended(h4 (mm))	4800 mm	4800 mm	4800 mm	4800 mm	4800 mm	4800 mm	4800 mm	4800 mm	4900 mm	4900 mm	4900 mm	4900 mm	4900 mm	4900 mm
Height of overhead cabin(h6 (mm))	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3360 mm	3360 mm	3360 mm	3360 mm	3360 mm	3360 mm
Seat height relating to SIP(h7 (mm))	2010 mm	2010 mm	2010 mm	2010 mm	2010 mm	2010 mm	2010 mm	2010 mm	2070 mm	2070 mm	2070 mm	2070 mm	2070 mm	2070 mm
Coupling height(h10 (mm))	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm	600 mm	600 mm	600 mm	600 mm	600 mm	600 mm
Overall length(l1 (mm))	7270 mm	7270 mm	7910 mm	7910 mm	7270 mm	7270 mm	6970 mm	6970 mm	8030 mm	8030 mm	8030 mm	8030 mm	8300 mm	8300 mm
Length to face of forks(l2 (mm))	5470 mm	5470 mm	5470 mm	5470 mm	5470 mm	5470 mm	5470 mm	5470 mm	5590 mm	5590 mm	5590 mm	5590 mm	5860 mm	5860 mm
Overall width(b1/b2 (mm))	2580/2320 mm	2580/2320 mm	2580/2320 mm	2580/2320 mm	2580/2320 mm	2580/2320 mm	2580/2320 mm	2580/2320 mm	2700/2500 mm	2700/2500 mm	2700/2500 mm	2700/2500 mm	2700/2500 mm	2700/2500 mm
Fork dimensions(s/e/l (mm))	90x250x1800 mm	90x250x1800 mm	95x250x2440 mm	95x250x2440 mm	90x250x1800 mm	90x250x1800 mm	90x250x1500 mm	90x250x1500 mm	110x250x2440 mm	110x250x2440 mm	110x250x1820 mm	110x250x1820 mm	110x250x2440 mm	110x250x2440 mm
Fork-carriage width(b3 (mm))	2510 mm	2510 mm	2510 mm	2510 mm	2510 mm	2510 mm	2510 mm	2510 mm	2640 mm	2640 mm	2640 mm	2640 mm	2640 mm	2640 mm
Distance between fork-arms(b5 (mm))	750/2300 mm	750/2300 mm	750/2300 mm	750/2300 mm	750/2300 mm	750/2300 mm	750/2300 mm	750/2300 mm	750/2400 mm	750/2400 mm	750/2400 mm	750/2400 mm	750/2400 mm	750/2400 mm
Ground clearance, laden, below mast(m1 (mm))	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm
Ground clearance, centre of wheelbase(m2 (mm))	325 mm	325 mm	325 mm	325 mm	325 mm	325 mm	325 mm	325 mm	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm
Aisle width with load length 1800mm(Ast (mm))	7870 mm	7870 mm	8510 mm	8510 mm	7870 mm	7870 mm	7870 mm	7870 mm	8040 mm	8040 mm	8040 mm	8040 mm	8220 mm	8220 mm
Aisle width with load length 2400mm(Ast (mm))	8470 mm	8470 mm	8510 mm	8510 mm	8470 mm	8470 mm	8470 mm	8470 mm	8640 mm	8640 mm	8640 mm	8640 mm	8860 mm	8860 mm
Turning radius(Wa (mm))	4950 mm	4950 mm	4950 mm	4950 mm	4950 mm	4950 mm	4950 mm	4950 mm	5100 mm	5100 mm	5100 mm	5100 mm	5460 mm	5460 mm
Minimum pivoting point distance(b13 (mm))	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm	1800 mm
Performance data
Travel speed, laden/unladen(km/h)	26/30 km/h	26/30 km/h	26/30 km/h	26/30 km/h	26/30 km/h	26/30 km/h	26/30 km/h	26/30 km/h	26/29 km/h	26/29 km/h	26/29 km/h	26/29 km/h	26/29 km/h	26/29 km/h
Lift speed, laden/unladen(m/s)	0.35/0.40 m/s	0.35/0.40 m/s	0.35/0.40 m/s	0.35/0.40 m/s	0.35/0.40 m/s	0.35/0.40 m/s	0.35/0.40 m/s	0.35/0.40 m/s	0.35/0.40 m/s	0.35/0.40 m/s	0.33/0.37 m/s	0.33/0.37 m/s	0.33/0.37 m/s	0.33/0.37 m/s
Lowering speed, laden/unladen(m/s)	0.38/0.35 m/s	0.38/0.35 m/s	0.38/0.35 m/s	0.38/0.35 m/s	0.38/0.35 m/s	0.38/0.35 m/s	0.38/0.35 m/s	0.38/0.35 m/s	0.38/0.35 m/s	0.38/0.35 m/s	0.36/0.33 m/s	0.36/0.33 m/s	0.36/0.33 m/s	0.36/0.33 m/s
Drawbar pull, laden/unladen(N)	75000/15000 N	75000/15000 N	150000/75000 N	150000/75000 N	150000/75000 N	150000/75000 N	150000/75000 N	150000/75000 N	125000/65000 N	125000/65000 N	125000/65000 N	125000/65000 N	125000/65000 N	125000/65000 N
Gradeability, laden/unladen(%)	28 %	28 %	28 %	28 %	28 %	28 %	28 %	28 %	25 %	25 %	25 %	25 %	20 %	20 %
Service brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake
Parking brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake
Combustion-engine
Engine manufacturer/type	CUMMINS/QSB6.7-C190	CUMMINS/B6.7	CUMMINS/QSB6.7-C190	CUMMINS/B6.7	CUMMINS/QSB6.7-C190	CUMMINS/B6.7	CUMMINS/QSB6.7-C190	CUMMINS/B6.7	CUMMINS/QSB6.7-C190	CUMMINS/B6.7	CUMMINS/QSB6.7-C190	CUMMINS/B6.7	CUMMINS/QSB6.7-C190	CUMMINS/B6.7
Emission STD	Stage 3A/Tier 3	Stage V/Tier 4	Stage 3A/Tier 3	Stage V/Tier 4	Stage 3A/Tier 3	Stage V/Tier 4	Stage 3A/Tier 3	Stage V/Tier 4	Stage 3A/Tier 3	Stage V/Tier 4	Stage 3A/Tier 3	Stage V/Tier 4	Stage 3A/Tier 3	Stage V/Tier 4
Engine power(kW)	142 kW	149 kW	142 kW	149 kW	142 kW	149 kW	142 kW	149 kW	142 kW	149 kW	142 kW	149 kW	142 kW	149 kW
Rated speed(r/min)	2300 r/min	2200 r/min	2300 r/min	2200 r/min	2300 r/min	2200 r/min	2300 r/min	2200 r/min	2300 r/min	2200 r/min	2300 r/min	2200 r/min	2300 r/min	2200 r/min
Number of cylinders/displacement((-)/(cm3))	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700
Vehicle electrical system voltage(V)	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Battery voltage/nominal capacity(V/Ah)	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120	2x12/120
Rated torque(N.m/r/min)	930/1500 N.m/r/min	990/1300 N.m/r/min	930/1500 N.m/r/min	990/1300 N.m/r/min	930/1500 N.m/r/min	990/1300 N.m/r/min	930/1500 N.m/r/min	990/1300 N.m/r/min	930/1500 N.m/r/min	990/1300 N.m/r/min	930/1500 N.m/r/min	990/1300 N.m/r/min	930/1500 N.m/r/min	990/1300 N.m/r/min
Transmissions Manufacturer	ZF	ZF	ZF	ZF	ZF	ZF	ZF	ZF	ZF	ZF	ZF	ZF	ZF	ZF
Transmissions Type	3WG161	3WG161	3WG161	3WG161	3WG161	3WG161	3WG161	3WG161	3WG171	3WG171	3WG171	3WG171	3WG171	3WG171
Stage FWD/RVS	3/3	3/3	3/3	3/3	3/3	3/3	3/3	3/3	3/3	3/3	3/3	3/3	3/3	3/3
Additional data
Operating pressure for attachments(Mpa)	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa	25 Mpa
Oil volume for attachments(l/min)	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min	265 l/min
Hydraulic Tank - capacity (drain & refill)(liter)	320 liter	320 liter	320 liter	320 liter	320 liter	320 liter	320 liter	320 liter	360 liter	360 liter	360 liter	360 liter	360 liter	360 liter
Fuel tank capacity(liter)	320 liter	280 liter	320 liter	280 liter	320 liter	280 liter	320 liter	280 liter	360 liter	320 liter	360 liter	320 liter	360 liter	320 liter
Sound pressure level at the driver's seat(dB (A))	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)	78 dB (A)

Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.

Highlights

Professional and entirely new appearance with a high degree of recognisability, simple and smooth profiling and strong industrial aesthetics; exposed parts arranged in a concealed manner.
Key parts from internationally well-known brands, validated by the market, reliable and durable; modular and standard design for great maturity.
High performance: travel speed and lift speed improved by 10% to 20%; reduced body for greater flexibility; CAE-optimised balanced structural components.
Comfort: new-style fully suspended cab with all-round view; optimised profile and excellent visibility; formed interior trim; shaped steel tube integral frame for high strength and better sealing.
Easy, efficient and economical: the cab can be tilted without any tools for easy service access.
Optional imaging system with front and rear cameras greatly increasing safety.
Excellent all-round visibility achieved by the overall design.
ZF gearbox with micro-electronic control provides three-speed power shifting; stable and accurate travelling.
Stage V / Tier 4f emissions compliant (common rail fuel system, turbocharged intercooled SCR, DOC and DPF); CUMMINS B6.7 engine.
Load-sensing hydraulics for high efficiency and energy saving, reducing hydraulic oil working temperature and extending the life of hydraulic components and seals.
Anti-slip pedal for high safety and easy maintenance.
Battery compartment easy to open for easy maintenance.
Newly designed LCD instrument with comprehensive functions displaying truck status and engine faults.
Suspended seat with fingertip system, easily adjusted to suit each operator.
KESSLER heavy-duty traction axle, two-stage reduction; wet brake, maintenance-free; hydraulically released spring-applied parking brake.
Reliability: increased digitisation, additional central controller, CAN-bus architecture, built-in diagnostic and management functions with fault alarm.
Precise operation: integrated fingertip system with pilot control; hydraulic brake curve optimisation for smooth, easy control.

Standard equipment

Operator Presence System (OPS) with buzzer
LCD display screen
Main power switch
Emergency power off switch
Maintenance-free 24V lead-acid battery
Reverse buzzer
High-decibel horn
LED lights (entire vehicle)
2 x working light on front mudguard
2 x front working light on top of cabin
2 x rear working light on top of cabin
2 x working light on both sides of mast
On-board diagnostics system
Engine fault alarm
Engine oil pressure alarm indicator
Air filter warning indicator
Water temperature indicator
Hour meter
Battery charge indicator
Low hydraulic pressure alarm indicator
Hydraulic oil filter warning indicator
Oil gauge
Fuel-water separator warning indicator
Oil temperature gauge
Pre-heat indicator
Drive mode indicator
Parking brake indicator
Service indicator
Standard colour
Vehicle toolkit
Pneumatic tyre
Fully hydraulic power steering
Transmission
Integrated joystick
Adjustable steering column
Adjustable armrest
Variable hydraulic pump system
Manual tilting cabin
Duplex mast
Standard lifting height
Standard fork
Fork hook-on type
Emergency descent

Options

Reverse sensor
Rear-view camera system
Rear-view camera system with memory
Front and rear-view camera system
Front and rear-view camera system with memory
4-direction camera system with single display
4-direction camera recording system with single display
In-cabin CCTV
Rear blue safety light
Front and rear blue safety light
Three-sided blue danger zone light
Overspeed alarm
Speed limitation
Voice reverse alarm
Automatic fire suppression system
Two-way radio
Weight indicator in display
Flashing warning light (non-rotating) with control switch
Tyre pressure monitoring
User-defined colour
Fire extinguisher (2 kg / 4 kg)
FIMS (Fleet Intelligent Management System)
Heating pack for cold regions
Other
Solid tyre
Centralised lubrication system (machine)
Automatic lubrication system
Tow pin
Electrostatic discharge chain
Rear-view mirror on right and left mudguards
Extended exhaust pipe
Lockable fuel cap
Spark arrester
Pre-cleaner air filter
Four-way hydraulic valve
Climate control system (air conditioning and heater)
Electric tilting cabin
Radio
Sunshade
USB charging interface
Clothes hanger hook
Reading light
1 x 24V power supply
1 x 12V power supply
License plate frame
Fan
Optional lifting height
Other fork specifications
Hydraulic fork positioning
Independently adjustable fork
Built-in sideshift
Integrated sideshift

HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colours, equipment or specifications detailed in this brochure, or to discontinue individual models. The colours of trucks delivered may differ slightly from those shown in brochures.
HANGCHA trucks conform to the European safety requirements. ISO 9001:2015, ISO 14001:2015, ISO 45001:2018.
2026 version 1 / copyright 2026/03.
Base dimensions, weights and performance are shared within each capacity and load-centre pair (W25G Stage 3A / Tier 3 and H9G Stage V / Tier 4 variants); the two variants differ only in engine type, emission standard, engine power, rated speed, rated torque and fuel tank capacity.
Page 6 also lists an 11-height wide-view pneumatic mast option table (GXR...M300 to M650); see details.md.
