X Series Diesel Forklift, 12 to 16 t

Diesel / LPGSale and rental

Capacity: 12 - 16 t
Specifications by model: 10 models

The X Series covers heavy internal-combustion (diesel) forklifts rated from 12,000 to 16,000 kg, offered across 10 models. Built for intensive handling of very heavy loads (ports, heavy industry, container and materials logistics), they use a reinforced profiled-steel frame and a Cummins B6.7 engine with emissions compliance that varies by variant. They feature a fully suspended all-round-vision cab, an OKAMURA power-shift transmission and a maintenance-free wet-brake axle. Available for sale and for rental.

Heavy 12 to 16 tonne capacity, 10 models covering various lift heights and fork configurations
Cummins B6.7 diesel engine with a two-speed OKAMURA power-shift transmission
Suspended all-round-vision cab with air conditioning and heating and a suspended seat
Maintenance-free wet-brake drive axle and a tiltable cab for easier servicing

Distributed brand : Hangcha

The needs assessment is free and without obligation.

Specifications by model

Model	CPCD120-XRXW25B	CPCD120-XRXH13B	CPCD120-XRH13B	CPCD140-XRXW25B	CPCD140-XRXH13B	CPCD160-XRXW25B	CPCD160-XRXW79B	CPCD160-XRXH13B	CPCD160-XRMW25B	CPCD160-XRMH13B
Distinguishing mark
Manufacturer	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.
Manufacturer's type designation	CPCD120-XRXW25B	CPCD120-XRXH13B	CPCD120-XRH13B	CPCD140-XRXW25B	CPCD140-XRXH13B	CPCD160-XRXW25B	CPCD160-XRXW79B	CPCD160-XRXH13B	CPCD160-XRMW25B	CPCD160-XRMH13B
Drive: electric (battery or mains), diesel, petrol, fuel gas	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Operator type: hand, pedestrian, standing, seated, order-picker	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Rated capacity/rated load(Q (kg))	12000	12000	12000	14000	14000	16000	16000	16000	16000	16000
Load centre distance(c (mm))	600	600	900	600	600	600	600	600	750	750
Load distance, centre of drive axle to fork(x (mm))	745	745	835	825	825	825	825	825	880	880
Wheelbase(y (mm))	3100	3100	3100	3100	3100	3100	3100	3100	3300	3300
Weight
Service Weight(kg)	16000	16000	16900	18200	18200	19200	19200	19200	20300	20300
Tyres, chassis
Tyres: solid rubber, superelastic, pneumatic, polyurethane	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Tyre size, front	10.00-20-14PR	10.00-20-14PR	10.00-20-14PR	11.00-20-18PR	11.00-20-18PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR
Tyre size, rear	10.00-20-14PR	10.00-20-14PR	10.00-20-14PR	11.00-20-18PR	11.00-20-18PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR
Wheels, number front / rear (x = driven wheels)	4×/2	4×/2	4×/2	4×/2	4×/2	4×/2	4×/2	4×/2	4×/2	4×/2
Tread, front(b10 (mm))	1780	1780	1780	1780	1780	1780	1780	1780	1780	1780
Tread, rear(b11 (mm))	1890	1890	1890	1890	1890	1890	1890	1890	1890	1890
Dimensions
Tilt of mast/fork carriage forward/backward(α/β(°))	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12
Height, mast lowered(h1 (mm))	3180	3180	3270	3270	3270	3290	3290	3290	3290	3290
Free lift(h2 (mm))	0	0	0	0	0	0	90	0	0	0
Lift(h3 (mm))	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Height, mast extended(h4 (mm))	4695	4695	4790	4790	4790	4790	4790	4790	4790	4790
Height of overhead cabin(h6 (mm))	3265	3265	3265	3280	3280	3300	3300	3300	3300	3300
Seat height relating to SIP(h7 (mm))	1930	1930	1930	1945	1945	1965	1965	1965	1965	1965
Coupling height(h10 (mm))	600	600	600	615	615	635	635	635	635	635
Overall length(l1 (mm))	6190	6190	6580	6260	6260	6380	6380	6380	6930	6930
Length to face of forks(l2 (mm))	4690	4690	4780	4760	4760	4880	4880	4880	5130	5130
Overall width(b1/b2 (mm))	2460/2200	2460/2200	2460/2200	2460/2200	2460/2200	2460/2200	2460/2200	2460/2200	2460/2200	2460/2200
Fork dimensions(s/e/l (mm))	80×200×1520	80×200×1520	100×200×1820	90×200×1520	90×200×1520	90×200×1520	85×200×1520	90×200×1520	100×200×1820	100×200×1820
Fork-carriage width(b3 (mm))	2370	2370	2370	2370	2370	2370	2370	2370	2370	2370
Distance between fork-arms(b5 (mm))	520/2200	520/2200	520/2200	520/2200	520/2200	520/2200	520/2200	520/2200	520/2200	520/2200
Ground clearance, laden, below mast(m1 (mm))	250	250	250	250	250	270	270	270	270	270
Ground clearance, centre of wheelbase(m2 (mm))	310	310	310	325	325	345	345	345	345	345
Aisle width with load length 1500mm(Ast (mm))	6800	6800	7190	6875	6875	6975	6975	6975	7630	7630
Aisle width with load length 1800mm(Ast (mm))	7100	7100	7190	7175	7175	7275	7275	7275	7630	7630
Turning radius(Wa (mm))	4350	4350	4350	4350	4350	4450	4450	4450	4750	4750
Minimum pivoting point distance(b13 (mm))	1480	1480	1480	1480	1480	1480	1480	1480	1480	1480
Performance data
Travel speed, laden/unladen(km/h)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Lift speed, laden/unladen(m/s)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Lowering speed, laden/unladen(m/s)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Drawbar pull, laden/unladen(N)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Gradeability, laden/unladen(%)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Service brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake	Wet disc brake
Parking brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake	spring applied, hydraulic release multi-disc brake
Engine
Engine manufacturer/type	QSB 6.7-C160	B6.7	B6.7	QSB 6.7-C160	B6.7	QSB 6.7-C160	QSB6.7	B6.7	QSB 6.7-C160	B6.7
Engine power(kW)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Rated speed(r/min)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Number of cylinders/displacement((-)/(cm3))	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700	6/6700
Emission Std.	StageIIIA/Tier3	Stage V/Tier 4	Stage V/Tier 4	StageIIIA/Tier3	Stage V/Tier 4	StageIIIA/Tier3	StageIV/Tier4F	Stage V/Tier 4	StageIIIA/Tier3	Stage V/Tier 4
Vehicle electrical system voltage(V)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Battery voltage/nominal capacity(V/Ah)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Rated torque(N·m/r/min)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Transmissions Manufacturer	Okamura	Okamura	Okamura	Okamura	Okamura	Okamura	Okamura	Okamura	Okamura	Okamura
Transmissions Type	Y63270X	Y63270X	Y63270X	Y63270X	Y63270X	Y63270X	Y63270X	Y63270X	Y63270X	Y63270X
Stage FWD/RVS	2/1	2/1	2/1	2/1	2/1	2/1	2/1	2/1	2/1	2/1
Additional data
Operating pressure for attachments(Mpa)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Oil volume for attachments(l/min)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Hydraulic Tank - capacity (drain & refill)(liter)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Fuel tank capacity(liter)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Sound pressure level at the driver's seat(dB (A))	78	78	78	78	78	78	78	78	78	78

Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.

Highlights

Professional industrial exterior design, high product recognition, compact and smooth modelling, modern industrial aesthetics; concealed arrangement of exposed parts makes the exterior cleaner and neater.
Structural parts such as the frame and mast upgraded and optimized on existing products, verified through CAE analysis and testing; modular and standardized design for a highly mature vehicle.
Improved digitization: bus architecture with several built-in diagnosis and management functions; central controller enables central fault alarm, simplified operations, easy diagnosis and flexible configuration of electrical functions.
Stage V / Tier 4f emissions compliance available; technologies include common rail fuel systems, turbocharged inter-cooled selective catalytic reduction (SCR), diesel oxidation catalysts (DOC) and diesel particulate filters (DPF). Powered by CUMMINS B6.7.

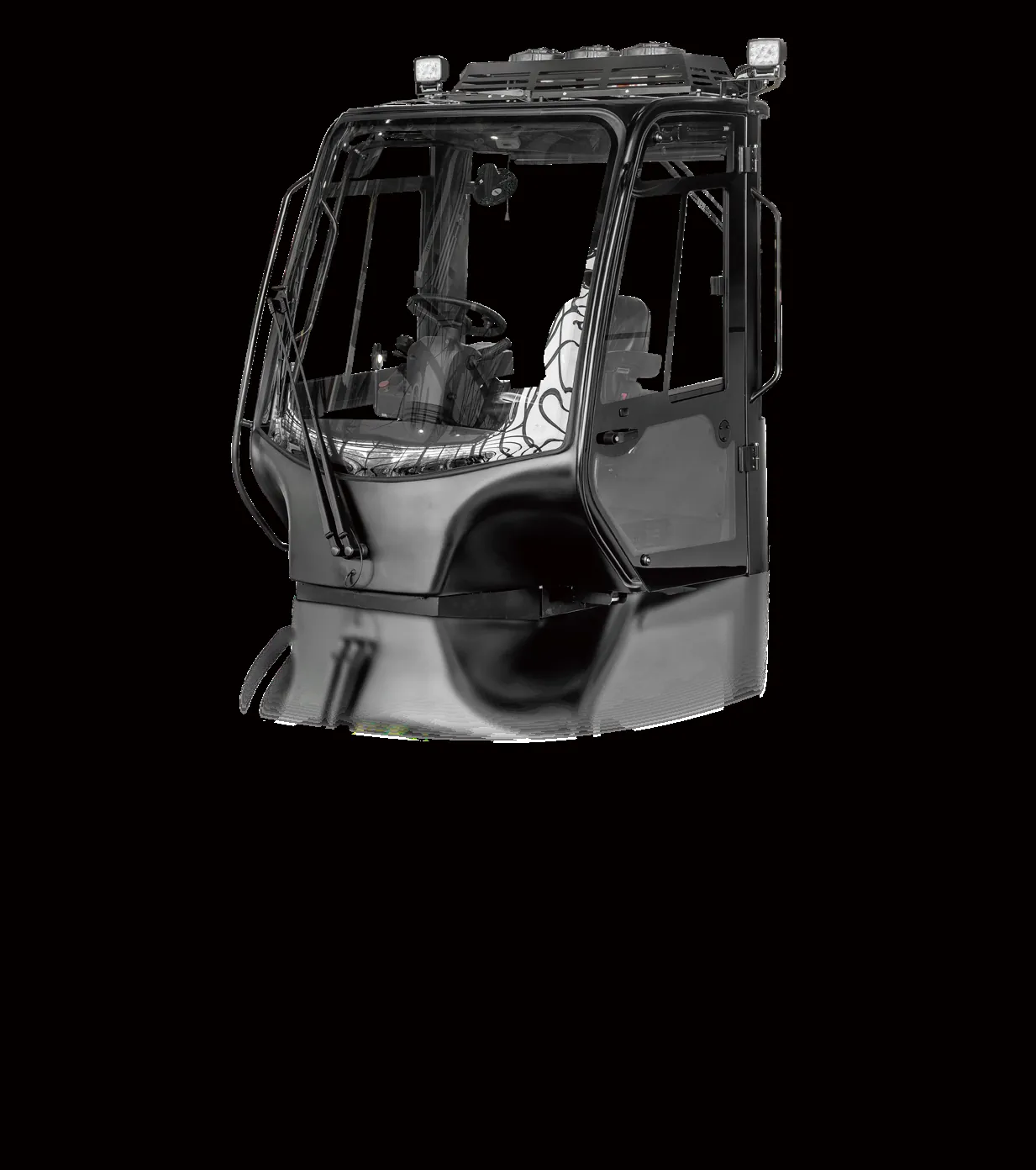

New fully-suspended all-round vision cab (HPC) with optimized vehicle outline for all-round sight; improved air conditioner with uniform airflow and strong cooling; waterproof, dust-proof, heatproof, soundproof, noise-reducing sealing design.
Integral frame constituted by profiled steel pipes; structural parts have higher strength.
Improved standard configuration: new cab, wet braking drive axle, hydraulic adjustable fork, LCD bus instruments, cooling and heating air conditioner, vehicle LED lights, snail horn and reversing radar. Optional equipment greatly increased via reserved design.
Average operation efficiency increased by more than 10%.
Overturnable (tiltable) cab (manual or electric), wide-opened hood and easy-to-dismount large electric control cover plate for convenient maintenance; cab can be tilted without any tools.
Compact integral joystick for accurate control; optimized hydraulic braking curve for smooth easy-to-control braking; fully-suspended seat with fingertip system and ergonomically-movable multidirectional adjustable console.
OKAMURA gear box with micro-electronic control provides two-shift power shifting for stable, accurate travelling.
Heavy-duty traction axle with two-stage deceleration; wet brake, maintenance-free; hydraulic release spring action parking brake, safe and reliable.
Newly designed LCD instrument displays truck status and engine faults for intuitive monitoring and easier maintenance.
Battery compartment easy to open for easy maintenance.
Optional imaging system with front and rear camera, greatly increasing safety.
Ergonomically designed steering wheel, joystick, control buttons, pedals and seat for easier operation.

Standard equipment

Pneumatic tyre
Fully hydraulic power steering
Extended exhaust pipe
Tow pin
Rear-view mirror on right & left mudguards
Integrated joystick
Adjustable steering column
Adjustable armrest
Four-way hydraulic valve
Cabin
Climate control system (air-conditioning and heater)
Manual tilting cabin
Radio
Sunshade
USB charging interface
Clothes hanger hook
Reading light
Fan
Duplex mast
Standard lifting height
Standard fork
Hydraulic fork positioning
Independently-adjustable fork
Standard color
Vehicle toolkit
FIMS (Fleet Intelligent Management System)
Operator Presence System (OPS) with buzzer
LCD display screen
Main power switch
Emergency power off switch
Maintenance-free 24V lead acid battery
Reverse buzzer
High decibel horn
LED lights (entire vehicle)
2 x Working light on front mudguard
2 x Front working light on top of cabin
2 x Rear working light on top of cabin
Reverse sensor
Rearview camera system
Flashing warning light (non rotating) with control switch
On-board diagnostics system
Engine fault alarm
Engine oil pressure alarm indicator
Air filter warning indicator
Water temperature indicator
Hour meter
Battery charge indicator
Low hydraulic pressure alarm indicator
Hydraulic oil filter warning indicator
Oil gauge
Fuel-water separator warning indicator
Oil temperature gauge
Pre-heat indicator
Drive mode indicator
Parking brake indicator
Service indicator

Options

Solid tyre
Centralized lubrication system (machine)
Automatic lubrication system
Lockable fuel cap
Spark arrester
Electrostatic discharge chain
Electric tilting cabin
1 x 24V power supply
1 x 12V power supply
License plate frame
Optional lifting height
Other fork specifications
Fork hook-on type
Built-in sideshift
Integrated sideshift
Emergency descent
User-defined colour
Fire extinguisher (2kg/4kg)
Heating pack for the cold region
2 x Working light on both sides of mast
Rearview camera system with memory
Front & rearview camera system
Front & rearview camera system with memory
4 directions camera system with single display
4 directions camera recording system with single display
In-cabin CCTV
Rear blue safety light
Front and rear blue safety light
Three sided blue danger zone light
Overspeed alarm
Voice reverse alarm
Automatic fire suppression system
Two-way radio
Weight indicator in display
Tyre pressure monitoring

HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colors, equipment, or specifications detailed in this brochure, or to discontinue individual models. The colors of trucks delivered may differ slightly from those in brochures.
HANGCHA trucks conform to the European Safety Requirements. ISO9001:2015, ISO14001:2015, ISO45001:2018.
Cover marked 'STAGE V CERTIFIED'. Footer: 2025 VERSION 3 / COPYRIGHT 2025/11.
Emission standard varies by engine variant: -XRXW25B/-XRMW25B variants are QSB 6.7-C160 StageIIIA/Tier3; -XRXH13B/-XRH13B/-XRMH13B variants are Cummins B6.7 Stage V/Tier 4; CPCD160-XRXW79B is QSB6.7 StageIV/Tier4F (118 kW, 2100 r/min, free lift 90 mm, fork 85x200x1520, travel 22/27 km/h, drawbar 100000 N).
Mast table (Wide-view mast, Pneumatic) - Model | Max fork height (mm) | Overall height lowered 12t / 14t-16t (mm) | Overall height extended 12t / 14t-16t (mm) | Tilt F/R (deg) | Load cap @600 12t / 14t / 16t (kg) | Load cap @750 16t (kg):
GXRX120/160/161M300 | 3000 | 3180 / 3290 | 4695 / 4790 | 6/12 | 12000 / 14000 / 16000 | 16000
GXRX120/160/161M330 | 3300 | 3330 / 3440 | 4995 / 5090 | 6/12 | 12000 / 14000 / 16000 | 16000
GXRX120/160/161M360 | 3600 | 3480 / 3590 | 5295 / 5390 | 6/12 | 12000 / 14000 / 16000 | 16000
GXRX120/160/161M400 | 4000 | 3680 / 3790 | 5695 / 5790 | 6/12 | 12000 / 14000 / 16000 | 16000
GXRX120/160/161M430 | 4300 | 3880 / 3990 | 6030 / 6140 | 6/12 | 12000 / 14000 / 16000 | 16000
GXRX120/160/161M450 | 4500 | 3980 / 4090 | 6230 / 6340 | 6/12 | 12000 / 14000 / 16000 | 16000
GXRX120/160/161M480 | 4800 | 4130 / 4240 | 6530 / 6640 | 6/6 | 12000 / 14000 / 16000 | 16000
GXRX120/160/161M500 | 5000 | 4230 / 4340 | 6730 / 6840 | 6/6 | 12000 / 14000 / 16000 | 16000
GXRX120/160/161M550 | 5500 | 4530 / 4640 | 7280 / 7390 | 3/6 | 10500 / 12500 / 14500 | 14500
GXRX120/160/161M600 | 6000 | 4780 / 4890 | 7780 / 7890 | 3/6 | 9000 / 11000 / 13000 | 13000
GXRX120/160/161M650 | 6500 | 5080 / 5190 | 8330 / 8440 | 3/6 | 7500 / 9500 / 11500 | 11500
Load capacity curve on spec page shows derating vs load centre (600-1200 mm) for 12t / 14t / 16t configurations.
