Aerial work platforms

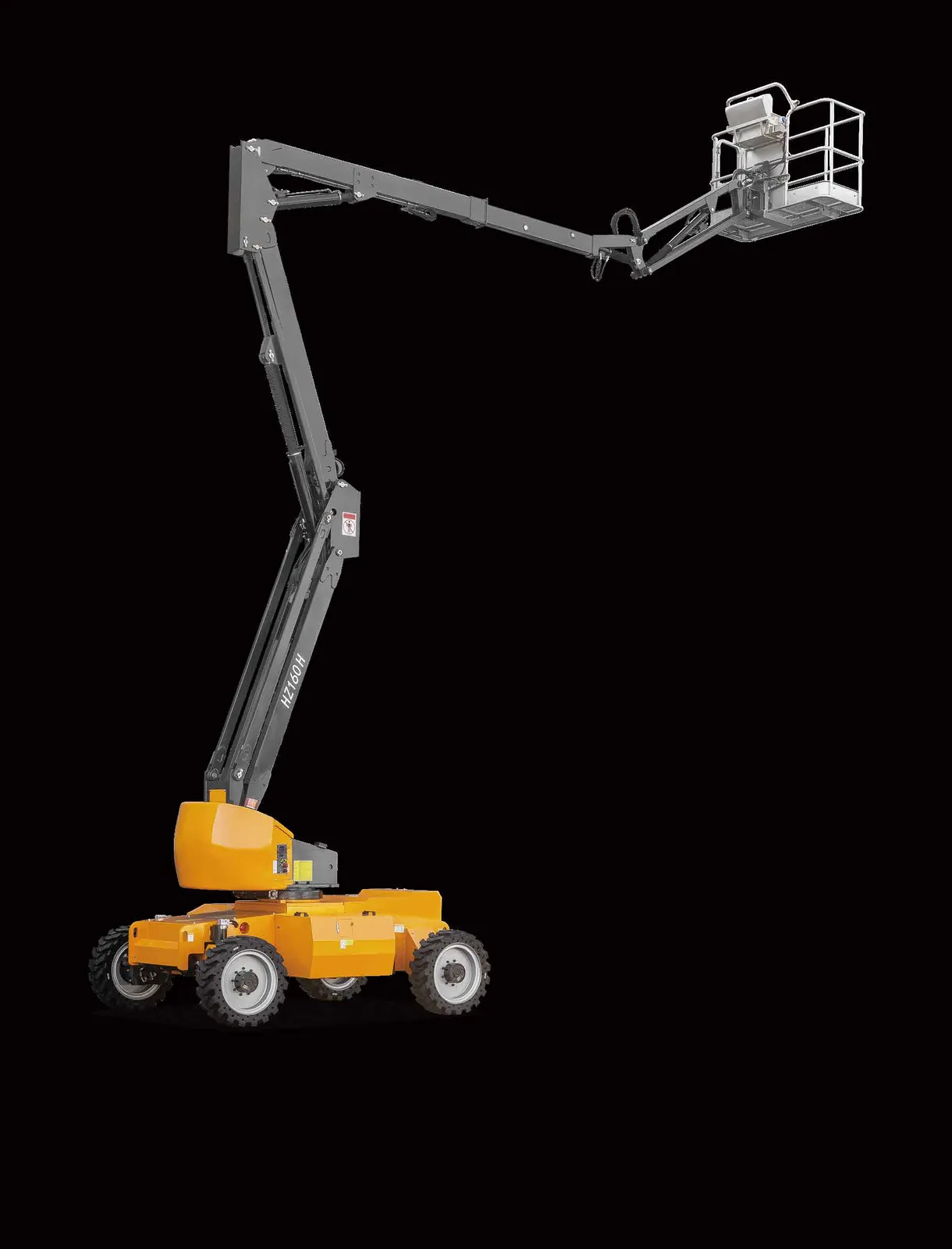

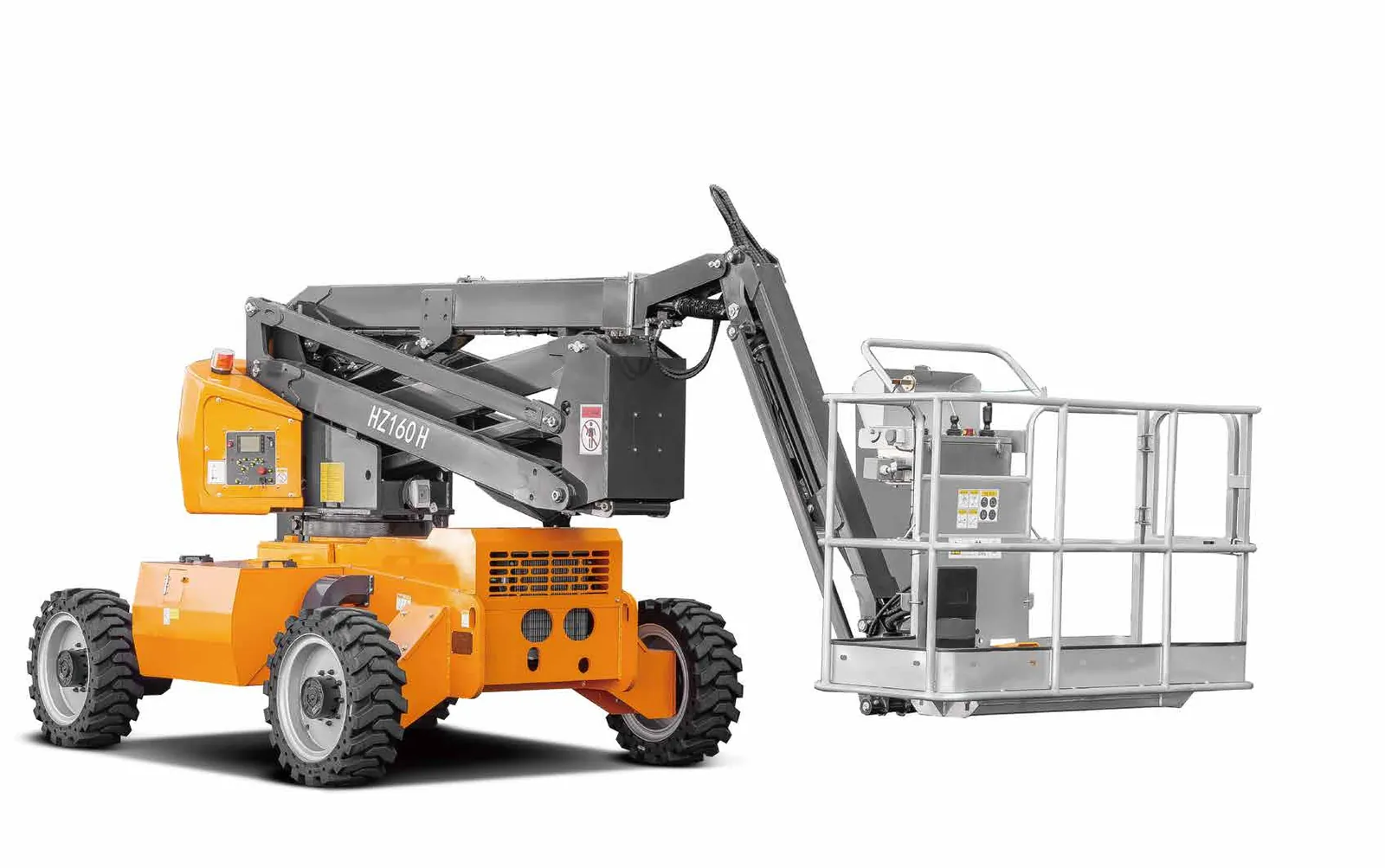

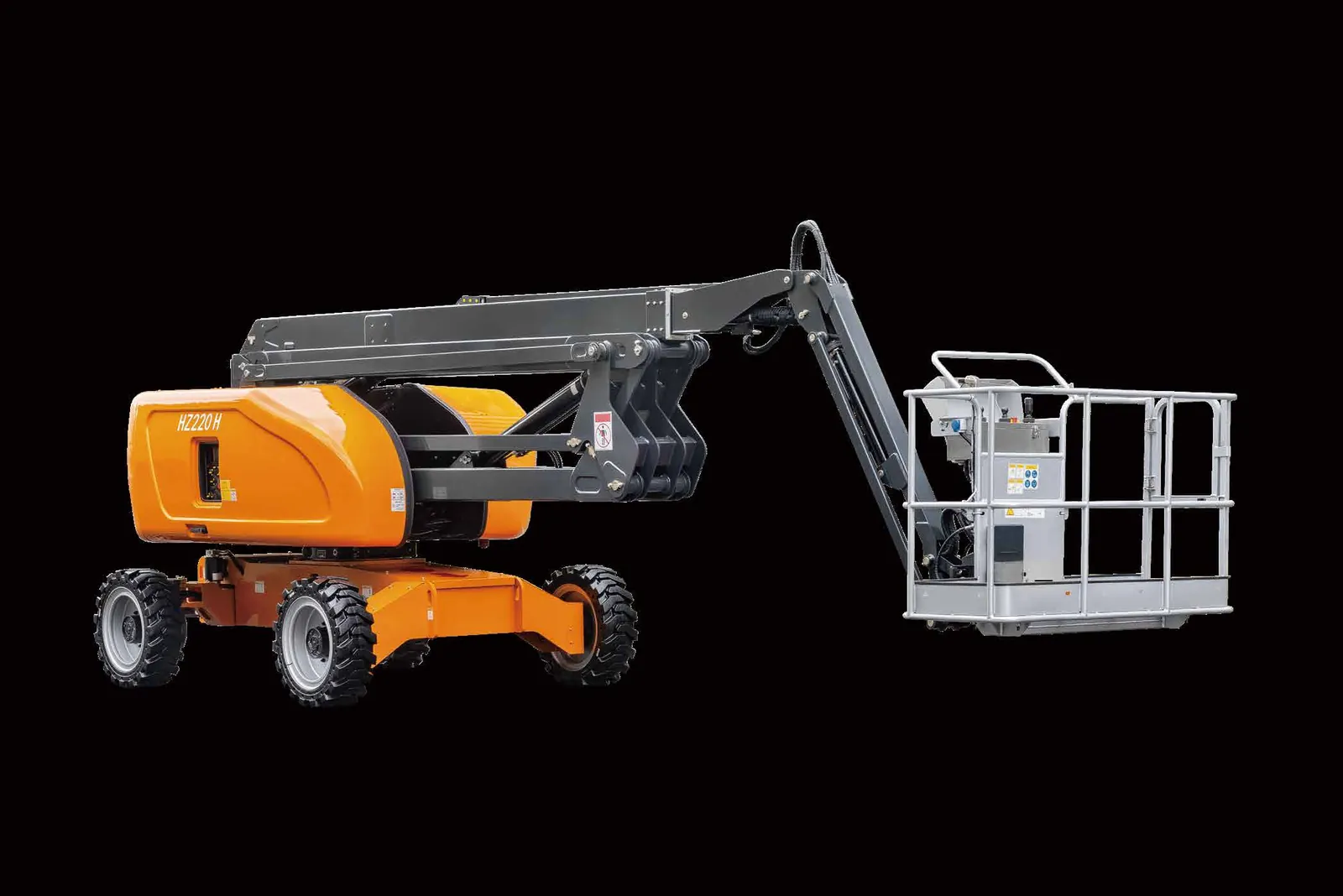

HZ Diesel Articulated Boom Lift, 230 to 480 kg

Diesel / LPGSale and rental

Capacity: 0.2 - 0.5 t
Specifications by model: 14 models

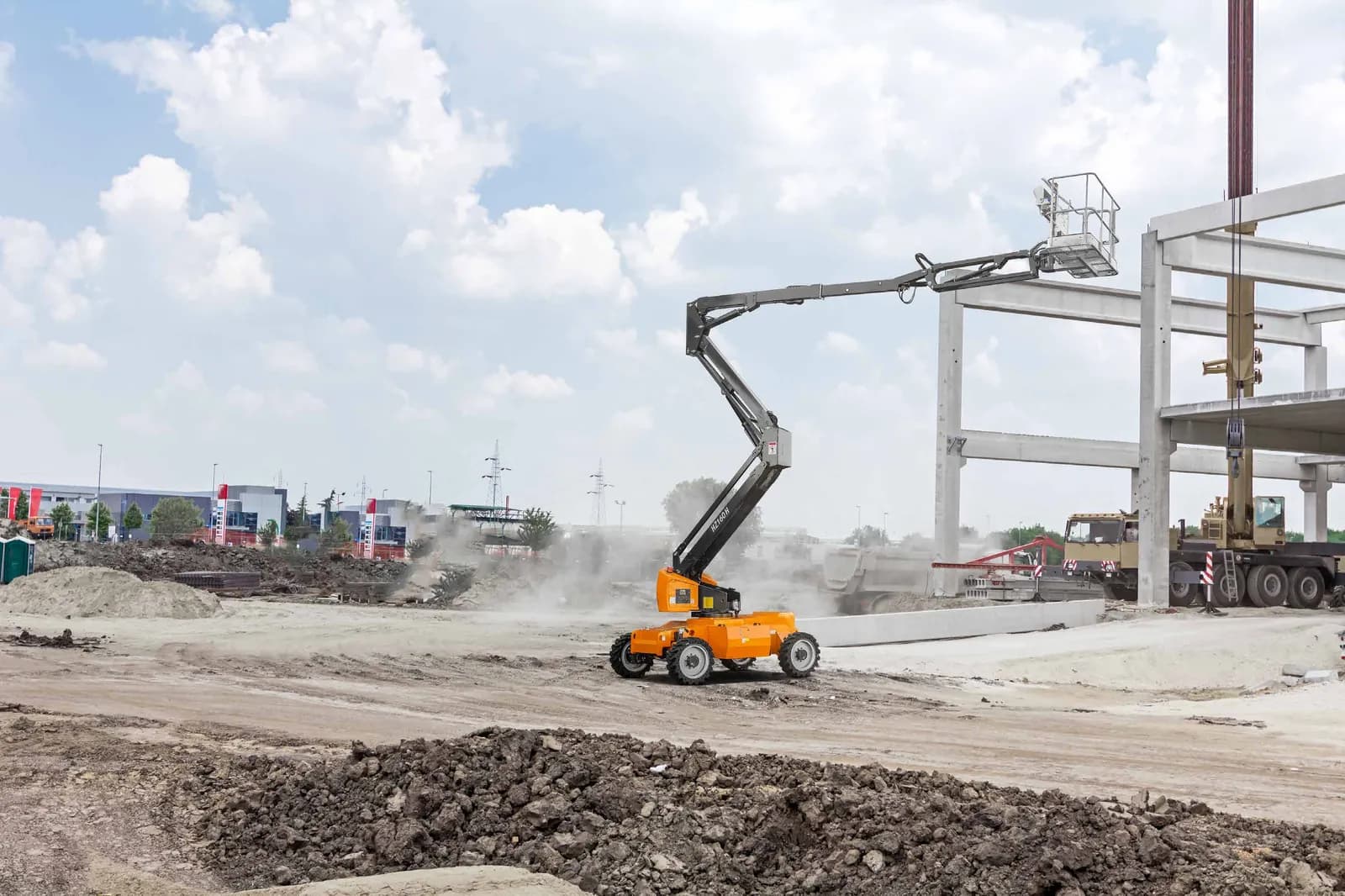

The HZ series comprises diesel articulated boom lifts with platform capacities from 230 to 480 kg depending on the model, across 14 versions (HZ140H to HZ570H). Self-propelled and operable by a single person, they combine 4WD travel with up, out and over positioning for elevated work on construction sites and in industrial settings. Built for humid, corrosive, dusty and high- or low-temperature environments, they suit demanding outdoor applications. Available for sale and for rental.

4WD drive and up to 40% gradeability for rough terrain
Up, out and over positioning to reach past obstacles
Fully proportional controls for precise boom positioning
Suited to humid, corrosive, dusty and extreme-temperature environments

Distributed brand : Hangcha

The needs assessment is free and without obligation.

Specifications by model

Model	HZ140H	HZ160H	HZ180H	HZ200H	HZ220H	HZ260H	HZ280H	HZ320H	HZ330H	HZ360H	HZ400H-X Leg	HZ400H-Standard	HZ470H	HZ570H
Reach & Capacity
Working Height Maximum(m)	14.8 m	16.7 m	18 m	20.2 m	22 m	26.2 m	28 m	32 m	33 m	36.5 m	40 m	40.1 m	47 m	56.86 m
Platform Height Maximum(m)	12.6 m	14.7 m	16 m	18.2 m	20 m	24.2 m	26 m	30 m	31 m	34.5 m	38 m	38.1 m	45 m	54.86 m
Working radius maximum(m)	8 m	8.1 m	9.55 m	11.6 m	12 m	15.4 m	17.28 m	19 m	21 m	21.6 m	21.6 m	21.6 m	23 m	25 m
Lift capacity(kg)	230 kg	230 kg	230 kg	230 kg	230 kg	230 kg	230 kg	480/320 kg	480/320 kg	480/320 kg	480/320 kg	480/320 kg	480/320 kg	480/320 kg
Crossing height(m)	6.73 m	8.25 m	8.25 m	8.3 m	9.4 m	10.2 m	10.2 m	12 m	12 m	16.5 m	19.5 m	19.5 m	19.5 m	23.5 m
Dimensions
Length(stowed)(m)	6.33 m	6.72 m	7.26 m	8.23 m	8.54 m	10.65 m	11.7 m	11 m	11 m	10.5 m	11.46 m	11.46 m	11.6 m	15.1 m
Width(stowed)(m)	2.28 m	2.28 m	2.28 m	2.38 m	2.38 m	2.48 m	2.58 m	2.58 m	2.48 m	2.49 m	2.48 m	2.49 m	2.49 m	2.49 m
Height(stowed)(m)	2.47 m	2.47 m	2.4 m	2.5 m	2.55 m	2.85 m	2.97 m	2.88 m	2.96 m	3.17 m	3.08 m	3.17 m	3.17 m	3.05 m
Wheel base(m)	2.4 m	2.4 m	2.4 m	2.4 m	2.4 m	3 m	3 m	3.3 m	4.1 m	3.96 m	4.1 m	3.96 m	5.6 m	5.6 m
Ground clearance(mm)	400 mm	400 mm	400 mm	400 mm	400 mm	400 mm	430 mm	400 mm	400 mm	430 mm	430 mm	430 mm	400 mm	400 mm
Platform measurement(m)	1.1×0.67 m	1.83×0.76 m	1.83*0.76 m	1.83*0.76 m	1.83×0.76 m	2.44 x 0.91 m	2.44 x 0.91 m	2.44×0.91 m	2.44×0.91 m	2.44×0.91 m	2.44×0.91 m	2.44×0.91 m	2.44×0.91 m	2.44×0.91 m
Turning radius(inside)(m)	1.87 m	1.87 m	1.87 m	1.82 m	2.66 m	1.75 m	2.6 m	2.6 m	2.73 m	3.13 m	2.73 m	3.13 m	2.69 m	2.69 m
Turning radius (outside)(m)	4.8 m	4.8 m	4.8 m	4.85 m	5.66 m	4.87 m	6.1 m	6.1 m	6.58 m	6.5 m	6.58 m	6.5 m	7.07 m	7.07 m
Performance
Travel speed(stowed)(km/h)	4.2 km/h	4.2 km/h	4.2 km/h	4.2 km/h	4.2 km/h	4.2 km/h	4.2 km/h	4.4 km/h	4.4 km/h	4.4 km/h	4.4 km/h	4.4 km/h	4.4 km/h	4.2 km/h
Travel speed(raised)(km/h)	0.8 km/h	0.8 km/h	1.1 km/h	1.1 km/h	1.1 km/h	1.1 km/h	1.1 km/h	1.1 km/h	0.8 km/h	1.1 km/h	1.1 km/h	1.1 km/h	1.1 km/h	1.1 km/h
Grade ability	40%	40%	45%	45%	45%	45%	40%	40%	40%	40%	40%	40%	40%	40%
Rotation speed(rpm)	0～0.8 rpm	0～0.8 rpm	0～0.8 rpm	0～0.8 rpm	0～0.8 rpm	0～0.8 rpm	0～1/3 rpm	0～1/3 rpm	0～1/3 rpm	0～0.8 rpm	0～0.8 rpm	0～0.8 rpm	0～1/3 rpm	0～1/3 rpm
Turntable swing	355° (360°Continuous optional)	355°	360° Continuous	360° Continuous	360°Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous
Platform leveling	Automatic	Automatic	Automatic leveling	Automatic leveling	Automatic	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling
Platform rotation	180°	180°	180°	180°	180°	180°	180°	180°	180°	±80	180°	±80°	180°	±90°
Tyres
Solid tire	33×12-20	33×12-20	33×12-20	33×12-20	33×12-20	36×14-20	385/65-22.5	385/65-22.5	445/65-24	385/65-22.5	445/65-24	385/65-22.5	445/65-22.5	445/65-22.5
Weight
Total weight(kg)	7000 kg	7500 kg	8700 kg	8800 kg	9500 kg	16300 kg	17000 kg	19500 kg	20000 kg	24000 kg	23000 kg	24500 kg	26500 kg	30280 kg
Powertrain & Electrical
Fuel tank capacity(L)	100 L	100 L	100 L	100 L	100 L	151L	150 L	151 L	151 L	151 L	151 L	151 L	200 L	200 L
Control voltage(V)	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	24 V	24 V
Drive & Steering mode	4×4×2	4×4×2	4×4×2	4×4×2	4×4×2	4×4×2	4×4×2	4×4×2	4×4×4	4×4×4	4×4×4	4×4×4	4×4×4	4×4×4
Engine	Yanmar	Yanmar	Yanmar	Yanmar	Yanmar	Yanmar	Yanmar	Yanmar	Yanmar	Yanmar	Yanmar	Yanmar	Cummins	Cummins/Deutz

Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.

Highlights

Adapted to humid, corrosive, dusty, high or low temperature environments; ideal for outdoor construction and industrial applications
Up, out and over positioning capability with class-leading outreach
Self-propelled machine operable by one person for continuous aerial work
Powerful off-road performance, high work efficiency, accuracy close to the operation target, intelligent maintenance
Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
4WD and up to 40% gradeability for superior terrainability
Fully proportional controls for precise boom positioning and smooth performance
Traveling system: closed running system (electro-proportional variable pump, hydraulic control variable motor, flow distribution valve) for high movement speed and low stable running speed; works efficiently and generates less heat
Hydraulic system: closed running system, easily adjusted wide speed range; boom hydraulic system uses double valve core circuit for enhanced safety; European and American pure-brand hydraulic components
Travel speed and boom movement speed automatically limited when platform amplitude/height reach a certain level; boom action limited when parked on ground with unevenness over 5 deg

Standard equipment

Standard four-link weighing devices (overload protection)
Automated detection device for platform amplitude and height
Automatic control of boom movement speed and traveling speed
High-precision weighing devices
Automatic platform (basket) leveling, tilt up to 1.5 deg relative to horizontal
Reliable brakes on platform travelling and boom rotation
Foot switch on platform (press-to-operate)
Balance valve or hydraulic lock on each cylinder
Base control and platform control system with commutation switches (basket control locks base control), protected by shields
Full proportional control handle with CAN bus and PLC control system
Buffer device on boom lift/descent/extend/rotate

Options

360 deg continuous turntable swing (HZ140H; standard on larger models)

HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colors, equipment, or specifications detailed in this brochure, or to discontinue individual models.
The colors of trucks delivered may differ slightly from those in brochures.
HANGCHA trucks conform to the European Safety Requirements. ISO9001:2015, ISO14001:2015.
2025 VERSION 1 / COPYRIGHT 2025/05.
Lift capacity '480/320' denotes dual capacity ratings (restricted / extended reach) for the larger models.
Total weight values are in kg (unit not printed in the spec table).
HZ140H turntable swing 355 deg standard, with 360 deg continuous optional.
