X Series Electric Rider Pallet Truck, 2 to 3 t
ElectricSale and rental
- Capacity
- 2 - 3 t
- Specifications by model
- 2 models

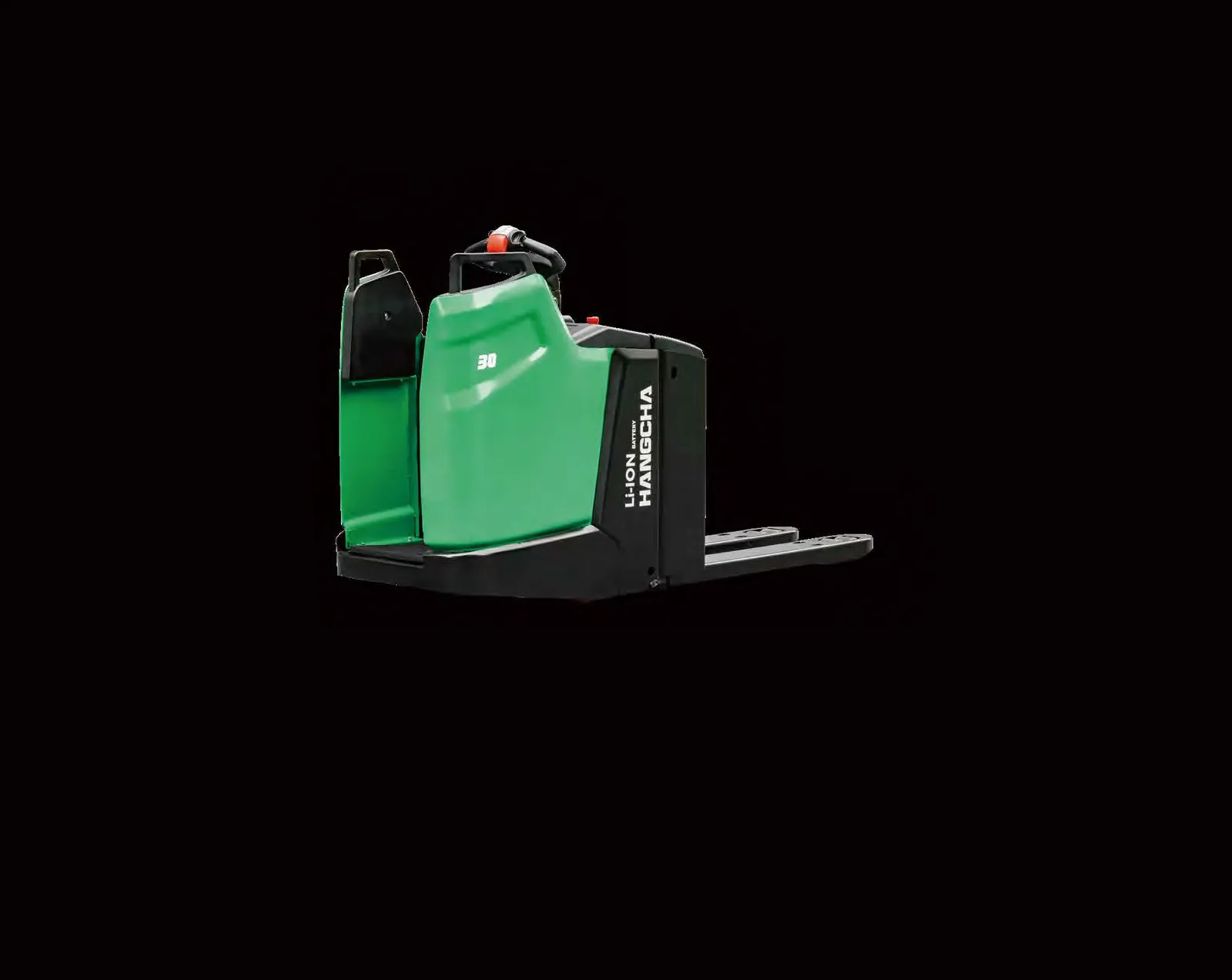

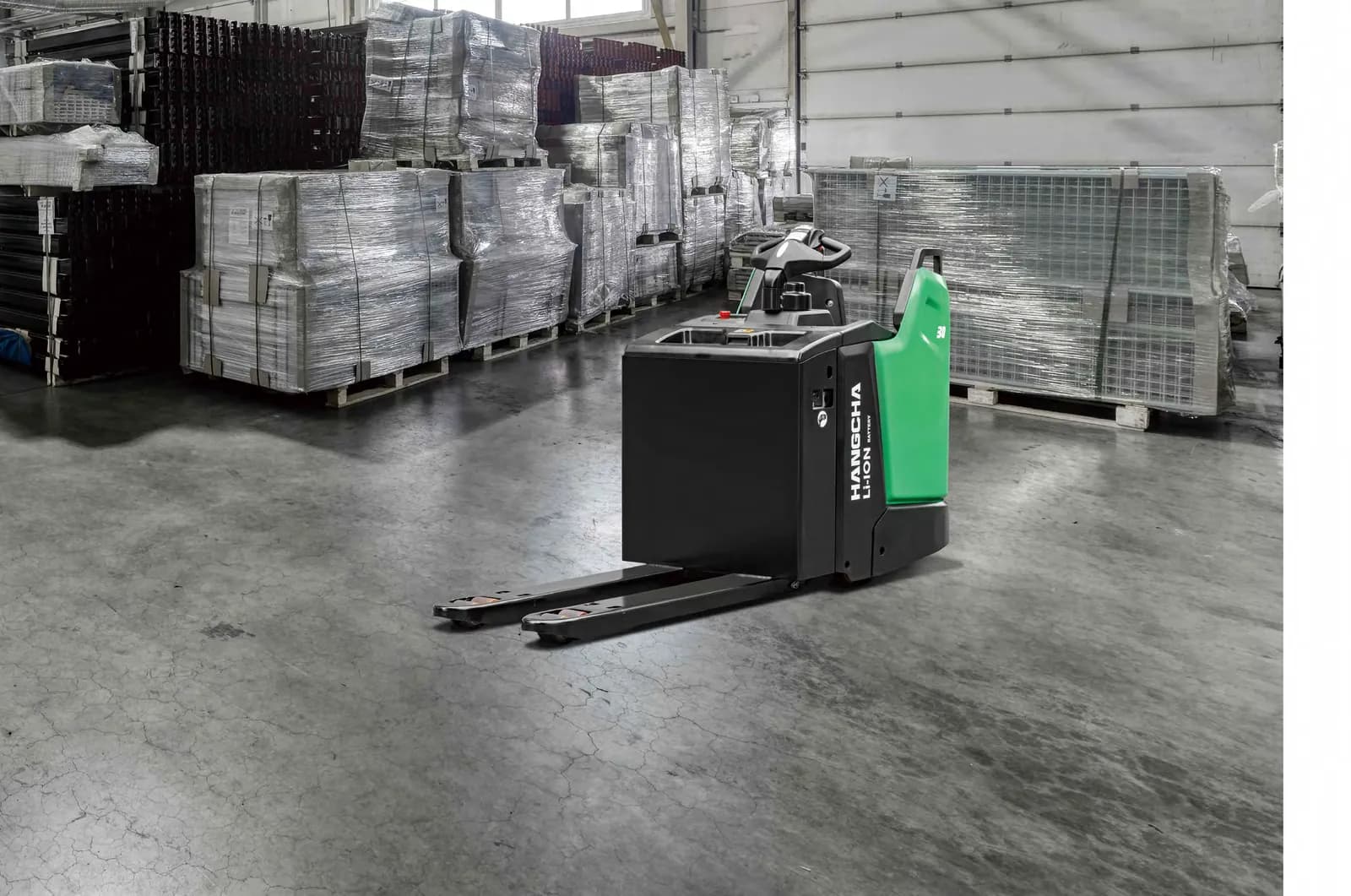

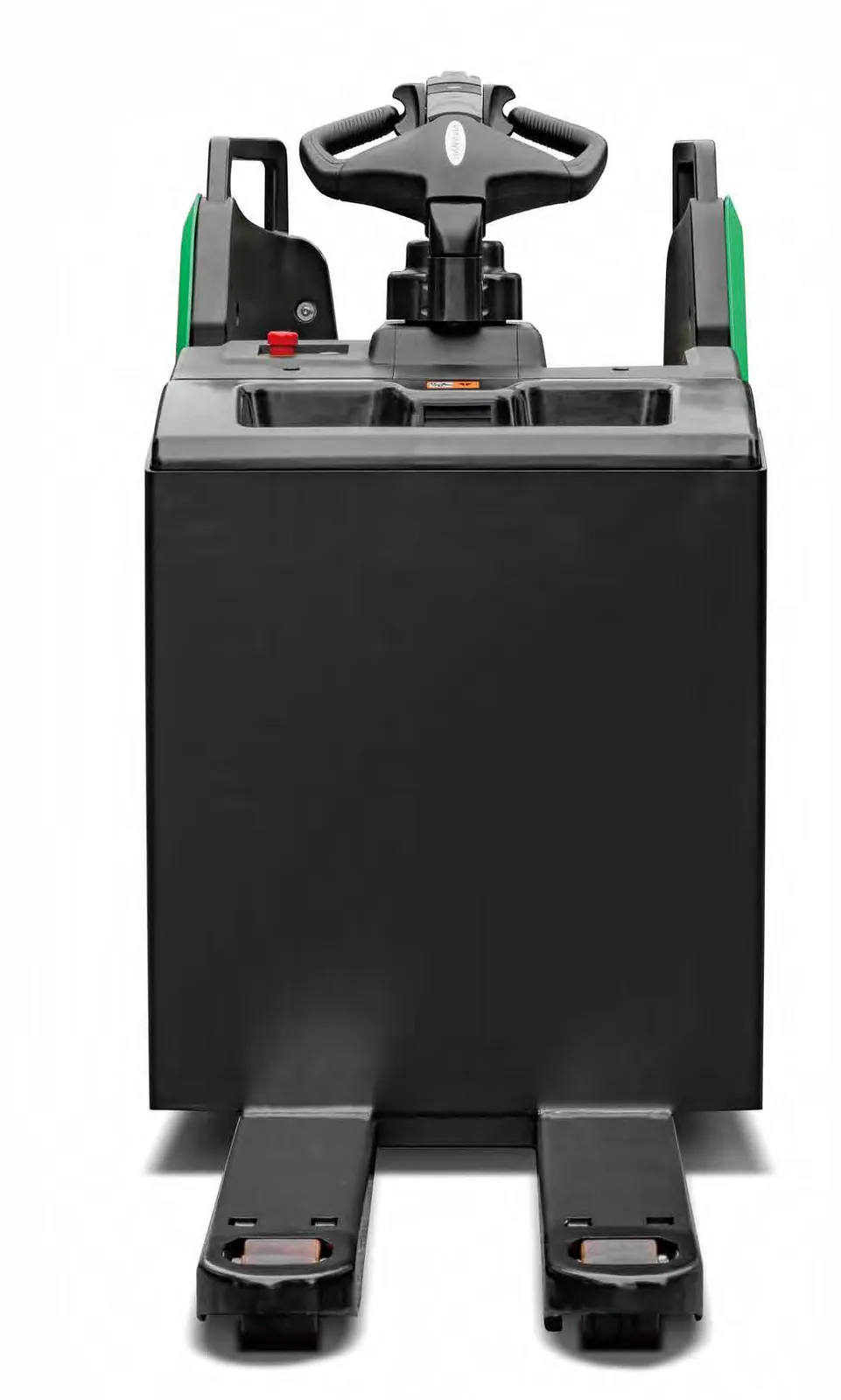

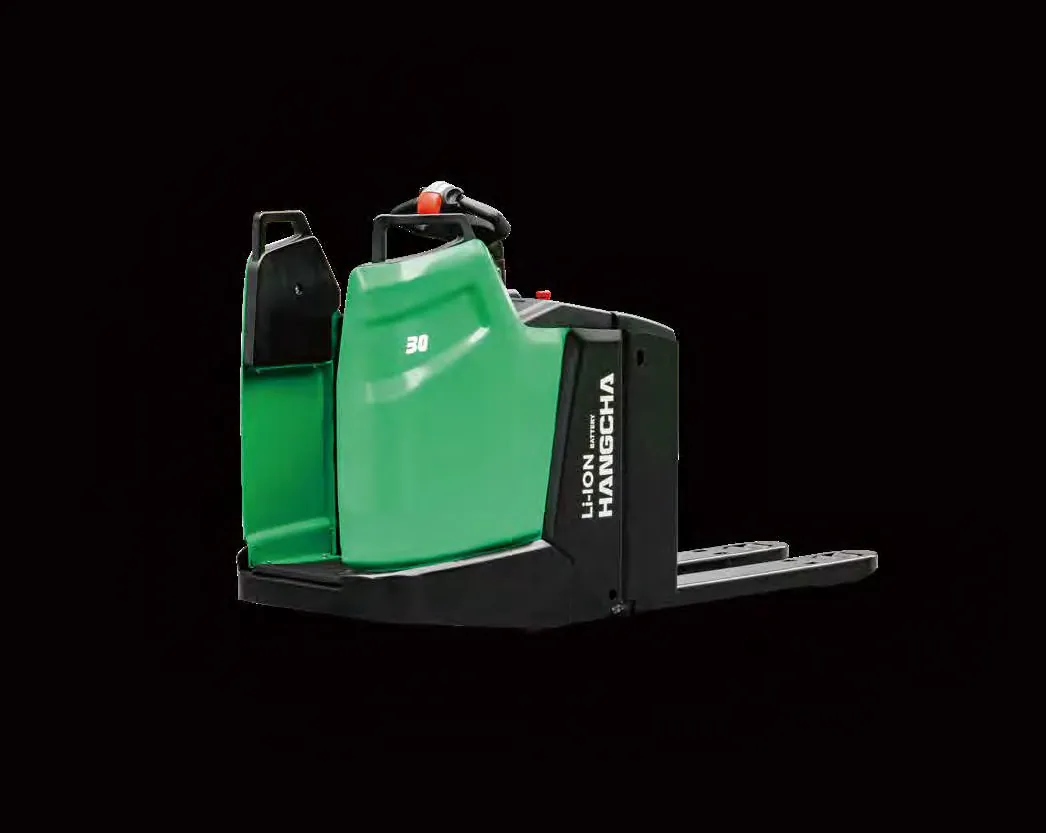

The X Series is a range of electric rider pallet trucks rated from 2,000 to 3,000 kg, offered in 2 models. It uses a brushless permanent magnet synchronous drive and a 48V system, with a lithium (LiFePO4) battery. Built for loading, unloading and moving palletized goods in warehouses, supermarkets and workshops. Available for sale and for rental.
- 2,000 to 3,000 kg capacity, 2 models
- 48V permanent magnet synchronous drive, low energy consumption
- LiFePO4 lithium battery, maintenance free, 6 year or 12,000 hour warranty
- Regenerative braking and slope anti-slide function
Distributed brand : Hangcha
The needs assessment is free and without obligation.
Download the spec sheet (PDF)Specifications by model
| Model | CBD20-XT1S-SISU | CBD30-XT1S-SISU |
|---|---|---|
| Distinguishing mark | ||
| Manufacturer | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. |
| Manufacturer's type designation | CBD20-XT1S-SISU | CBD30-XT1S-SISU |
| Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas | Electric | Electric |
| Operator type: hand, pedestrian, standing, seated, order-picker | standing | standing |
| Rated capacity/rated load(kg) | 2000 kg | 3000 kg |
| Load centre distance(c (mm)) | 600 mm | 600 mm |
| Load distance, centre of drive axle to fork(x (mm)) | 912/980 mm | 912/980 mm |
| Wheelbase(y (mm)) | 1364/1432 mm | 1364/1432 mm |
| Weight | ||
| Service weight(kg) | 705 kg | 705 kg |
| Axle loading, laden front/rear(kg) | 1060/1645 kg | 1455/2250 kg |
| Axle loading, unladen front/rear(kg) | 605/100 kg | 605/100 kg |
| Tyres/chassis | ||
| Tyres: solid rubber, superelastic, pneumatic, polyurethane | PU | PU |
| Tyre size, front | Ø250x80 | Ø250x80 |
| Tyre size, rear | Ø83x80 | Ø83x80 |
| Additional wheels (dimensions) | Ø125x50 | Ø125x50 |
| Wheels, number front/rear (x = driven wheels) | 1x +2/4 | 1x +2/4 |
| Tread, front(b10 (mm)) | 505 mm | 505 mm |
| Tread, rear(b11 (mm)) | 370 mm | 370 mm |
| Dimensions | ||
| Lift(h3 (mm)) | 125 mm | 125 mm |
| Height drawbar in driving position min./max.(h14 (mm)) | 1220 mm | 1220 mm |
| Height, lowered(h13 (mm)) | 85 mm | 85 mm |
| Overall length(l1 (mm)) | 2290 mm | 2290 mm |
| Length to face of forks(l2 (mm)) | 1140 mm | 1140 mm |
| Overall width(b1/b2 (mm)) | 770 mm | 770 mm |
| Fork dimensions DIN ISO 2331(s/e/l (mm)) | 60/170/1150 mm | 60/170/1150 mm |
| Fork spread(b5 (mm)) | 540 mm | 540 mm |
| Ground clearance, centre of wheelbase(m2 (mm)) | 23 mm | 23 mm |
| Aisle width for pallets 1000 x 1200 crossways(Ast (mm)) | 2490 1) mm | 2490 1) mm |
| Aisle width for pallets 800 x 1200 lengthways(Ast (mm)) | 2540 2) mm | 2540 2) mm |
| Turning radius(Wa (mm)) | 2052/2120 mm | 2052/2120 mm |
| Performance data | ||
| Travel speed, laden/unladen(km/h) | 9.5/12.5 km/h | 7.5/12.5 km/h |
| Lift speed, laden/unladen(m/s) | 0.05/0.07 m/s | 0.04/0.07 m/s |
| Lowering speed, laden/unladen(m/s) | 0.06/0.06 m/s | 0.05/0.04 m/s |
| Max. gradeability, laden/unladen(%) | 10/16 % | 6/16 % |
| Service brake | Regenerative | Regenerative |
| Electric-engine | ||
| Drive motor rating S2 60 min(kW) | 2.2 kW | 2.2 kW |
| Lift motor rating at S3 15 %(kW) | 2.2 kW | 2.2 kW |
| Battery voltage/nominal capacity((V)/(Ah) or kWh) | 48/105 (V)/(Ah) or kWh | 48/105 (V)/(Ah) or kWh |
| Battery weight(kg) | 60 kg | 60 kg |
Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.
Highlights
- X series rider pallet trucks are a new generation of products newly developed by Hangcha for warehousing and logistics applications, using advanced permanent magnet brushless drive technology and equipped with a new 48V system.
- Ideal tools for loading, unloading and handling palletized goods in warehouses, supermarkets, workshops and homes.
- RUGGED ON THE OUTSIDE: professional industrial exterior design and series family design; smooth vivid profile and fully ergonomic design.
- Made of high-strength steel plates molded by stamping; robust, durable, high-grade and meets environmental protection requirements.
- REVOLUTIONARY PERFORMANCE: Regenerative brake and slope anti-slide function.
- High power drive motor provides fast travel speed and good gradeability.
- Permanent magnet synchronous drive system with excellent performance and low energy consumption; 48V power supply system generates less heat.
- Travel speed (2.0t laden): 9.5 km/h; Gradeability (2.0t laden): 10%.
- With VCU control, the truck can be controlled accurately, stably and more efficiently.
- Electric steering feature enables easier and more flexible operation.
- COMFORTABLE EXPERIENCE: Standing driving pedal with shock-absorbing design improves comfort and reduces long-time driving fatigue.
- Newly developed tiller is compact and stylish.
- Optimized design structure offers good visibility and easy entrance of the pallet.
- Displayed turtle speed function to move slowly and help stack goods in narrow spaces.
- Compact body and big rounded design for ideal operation in limited space; wedge designed chassis greatly increases passing ability.
- Customer can choose different width of outside fork and length of forks to fit variable pallets.
- New torsion bar-equipped additional wheel system enables the truck to drive stably.
- RELIABILITY: Optimized mast which is stable, reliable and subject to a small force.
- Stamped fork with higher strength and impact resistance, and guided fork prongs improve operation efficiency.
- Non-contact proximity switch provides long life and reliable operation.
- Water-proof plugs and connectors provide reliable protection to the electric system.
- Hydraulic power unit provides low noise, low vibration, smooth lifting and landing.
- MORE PROTECTION: Low center of gravity design and high-strength steel frame structure give a large residual load capacity.
- Integral metal rear hood can withstand external impact.
- SAFETY: Three braking types (releasing brake, reversing brake, emergency brake) ensure driving safety.
- Applied slope anti-slip function ensures operation safety.
- Turning speed is automatically reduced when steering.
- Emergency button on the tiller head can effectively avoid harm to the driver.
- Lifting limitation switch protects loads from damage.
- MAINTENANCE: Permanent magnet synchronous motor needs no maintenance.
- Fault information can be checked directly via the interactive instruments instead of the manual.
- Rear cover can be completely opened; operator can see all components for convenient maintenance.
- All shafts installed with lubricated shaft sleeve and oil cup for convenient maintenance and long service life.
- LITHIUM POWERED (48V Lithium Ion): Long service life (4000 full charging cycles with at least 75% residual capacity), return on investment, maintenance free, high energy density, cold area application, high safety and reliability, opportunity charging.
- HANGCHA provides a Li-ion battery (LiFePO4) with a 6 year or 12000 hour warranty.
Standard equipment
- 48V permanent magnet synchronous drive motor
- Hydraulic power unit
- PU wheel
- 1150mm fork length
- 540mm outside fork width
- Fork ground clearance height of 85mm
- Electronic lifting limitation
- Multi-function tiller
- Additional wheels
- Dual load wheels
- USB plug
- 48V/105Ah lithium battery (EVE)
- Electric steering
- Systech controller
- Interactive meter
- Non-contact interlock switch
- Emergency disconnect switch
- Horn
- PIN code access
- Turning deceleration
Options
- Different fork lengths
- Different outside fork widths
- Single load wheel
- Key switch
- 48V/125Ah lithium battery (CATL)
- Lithium battery (48V/105Ah, EVE) with on-board charger (48V, 20A)
- Foot detection sensor (truck slows down or stops if the operator's foot is detected outside the platform contours)
- Note 1) Aisle width value according to VDI2198 standard +430mm.
- Note 2) Aisle width value according to VDI2198 standard +236mm.
- HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colors, equipment, or specifications detailed in this brochure, or to discontinue individual models. The colors of trucks delivered may differ slightly from those in brochures.
- HANGCHA trucks conform to the European Safety Requirements. ISO9001:2015, ISO14001:2015, ISO45001:2018.
- 2025 VERSION 1 / COPYRIGHT 2025/11.
- Lithium battery charging temperature -30 C to 65 C; discharge temperature -30 C to 65 C; storage temperature -30 C to 65 C.
- Lithium battery (48V/105Ah, EVE) with on-board charger is 48V, 20A.
